G100SLHEY

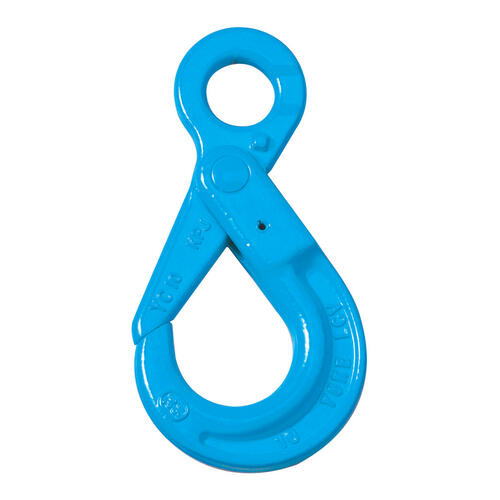

G100 Self-Locking Hook Eye Yoke

Name: G100 Self-Locking Hook Eye Yoke
SKU: G100SLHEY
Availability: InStock

Price range: $73.00 through $108.00

Heavy-duty Grade 100 self-locking hook with eye, designed for maximum security and durability in lifting applications.

Size

Make an Enquiry

SKU: G100SLHEY Category: G100 Fittings

Description
The G100 Self-Locking Hook Eye Yoke is manufactured from quenched and tempered alloy steel, offering at least 25% greater WLL than traditional G80 products. Built with an automatic self-locking mechanism, it ensures safe and secure load retention during lifting operations.

Certified in accordance with EN 1677-3, ASME B30.26, ASME B30.10, and DGUV GS-OA-15-05, this hook undergoes proof load testing at 2.5× WLL, guaranteeing industry-compliant reliability. The fatigue rating exceeds 20,000 cycles at 1.5× WLL, optimizing long-term performance. Each batch is subjected to Magnaflux crack detection, ensuring flawless quality assurance.

Advantages:
- Automatic self-locking mechanism for safety
- 25% higher WLL than G80 hooks
- Batch tested for reliability
- Fatigue rated for durability
- Industry certified
What’s Included:
- 1 x G100 Self-Locking Hook Eye Yoke (As per size selected)
Features
- Manufactured in accordance with EN 1677-3, ASME B30.26, ASME B30.10, ensuring full compliance.
- Proof load tested at 2.5× WLL, guaranteeing maximum safety and reliability.
- Magnaflux crack detection performed on every batch, ensuring structural integrity.

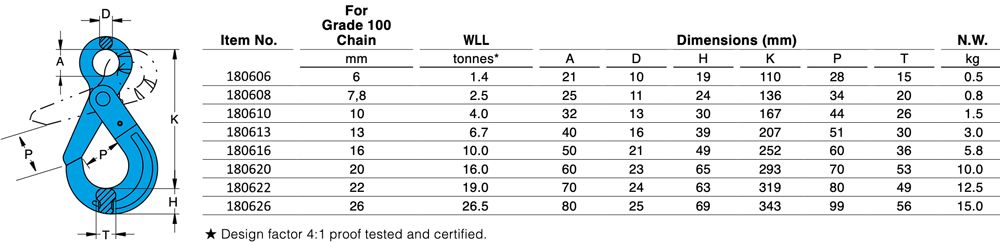

Specifications

Material

Quenched and tempered alloy steell

Safety Factor

4:1

Testing

Proof load tested at 2.5× WLL, fatigue tested to 20,000 cycles at 1.5× WLL

Certification

EN 1677-3, ASME B30.26, ASME B30.10, DGUV GS-OA-15-05

Marking

Chain size, grade, manufacturer ID, and Austlift branding

Code

180606

Size

6mm

WLL

1.4T

Material

Quenched and tempered alloy steel

Safety Factor

4:1

Testing

Proof load tested at 2.5× WLL, fatigue tested to 20,000 cycles at 1.5× WLL

Certification

EN 1677-3, ASME B30.26, ASME B30.10, DGUV GS-OA-15-05

Marking

Chain size, grade, manufacturer ID, and Austlift branding

Code

180608

Size

8mm

WLL

2.5T

Material

Quenched and tempered alloy steel

Safety Factor

4:1

Testing

Proof load tested at 2.5× WLL, fatigue tested to 20,000 cycles at 1.5× WLL

Certification

EN 1677-3, ASME B30.26, ASME B30.10, DGUV GS-OA-15-05

Marking

Chain size, grade, manufacturer ID, and Austlift branding

Code

180610

Size

10mm

WLL

4T

Material

Quenched and tempered alloy steel

Safety Factor

4:1

Testing

Proof load tested at 2.5× WLL, fatigue tested to 20,000 cycles at 1.5× WLL

Certification

EN 1677-3, ASME B30.26, ASME B30.10, DGUV GS-OA-15-05

Marking

Chain size, grade, manufacturer ID, and Austlift branding

Description
Additional information

Description

The G100 Self-Locking Hook Eye Yoke is manufactured from quenched and tempered alloy steel, offering at least 25% greater WLL than traditional G80 products. Built with an automatic self-locking mechanism, it ensures safe and secure load retention during lifting operations.

Certified in accordance with EN 1677-3, ASME B30.26, ASME B30.10, and DGUV GS-OA-15-05, this hook undergoes proof load testing at 2.5× WLL, guaranteeing industry-compliant reliability. The fatigue rating exceeds 20,000 cycles at 1.5× WLL, optimizing long-term performance. Each batch is subjected to Magnaflux crack detection, ensuring flawless quality assurance.
