Special Order

Special Ordered Items have extended Delivery or Click & Collect timelines. Please purchase and we will organise the goods for you. Read More

G100SCSP

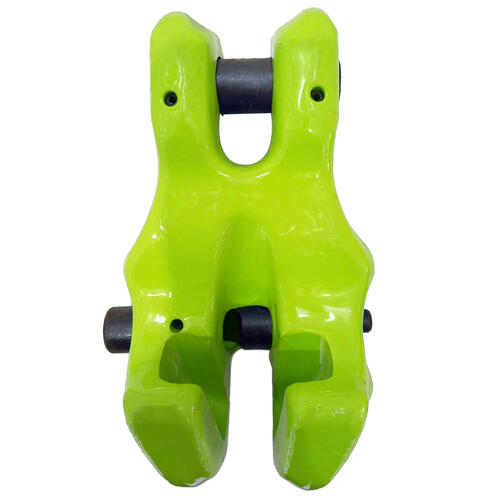

G100 Shortening Clutch with Safety Pin

Name: G100 Shortening Clutch with Safety Pin
SKU: G100SCSP
Availability: InStock

Price range: $38.00 through $147.00

Heavy-duty Grade 100 shortening clutch, designed for precise chain adjustments with an integrated safety pin to prevent accidental disengagement.

Size

Make an Enquiry

SKU: G100SCSP Category: G100 Fittings

Description
The G100 Shortening Clutch with Safety Pin is built for secure chain length adjustments in lifting and rigging operations, offering efficient tensioning without compromising load capacity. Manufactured from quenched and tempered alloy steel, it provides enhanced durability and at least 25% greater WLL than traditional G80 products.

Designed specifically for Grade 100 chain slings, this shortening clutch undergoes proof load testing at 2.5× WLL, ensuring maximum safety and reliability. It is fatigue rated for 20,000 cycles at 1.5× WLL, with Magnaflux crack detection performed on every batch, guaranteeing flawless structural integrity. The integrated locking safety pin ensures firm chain retention, preventing unintentional release during lifting operations.

Advantages:
- Precise chain length adjustment for lifting applications
- Integrated safety pin prevents accidental chain release
- Optimized for Grade 100 chain systems
- 25% greater WLL than G80 products
- Batch tested for reliability
What’s Included:
- 1 x G100 Shortening Clutch with Safety Pin (As per size selected)
Features
- Manufactured in accordance with EN 1677, ensuring full compliance.
- Proof load tested at 2.5× WLL, guaranteeing maximum structural integrity.
- Fatigue tested to 20,000 cycles at 1.5× WLL, ensuring long-term durability.
Specifications

Material

Quenched and tempered alloy steel

Safety Factor

4:1

Testing

Proof load tested at 2.5× WLL, fatigue tested to 20,000 cycles at 1.5× WLL

Certification

EN 1677

Marking

Chain size, grade, manufacturer ID, and Austlift branding

Code

171210

Size

10mm

WLL

4T

Material

Quenched and tempered alloy steell

Safety Factor

4:1

Testing

Proof load tested at 2.5× WLL, fatigue tested to 20,000 cycles at 1.5× WLL

Certification

EN 1677

Marking

Chain size, grade, manufacturer ID, and Austlift branding

Code

171213

Size

13mm

WLL

6.7T

Material

Quenched and tempered alloy steel

Safety Factor

4:1

Testing

Proof load tested at 2.5× WLL, fatigue tested to 20,000 cycles at 1.5× WLL

Certification

EN 1677

Marking

Chain size, grade, manufacturer ID, and Austlift branding

Code

171216

Size

16mm

WLL

10T

Material

Quenched and tempered alloy steel

Safety Factor

4:1

Testing

Proof load tested at 2.5× WLL, fatigue tested to 20,000 cycles at 1.5× WLL

Certification

EN 1677

Marking

Chain size, grade, manufacturer ID, and Austlift branding
