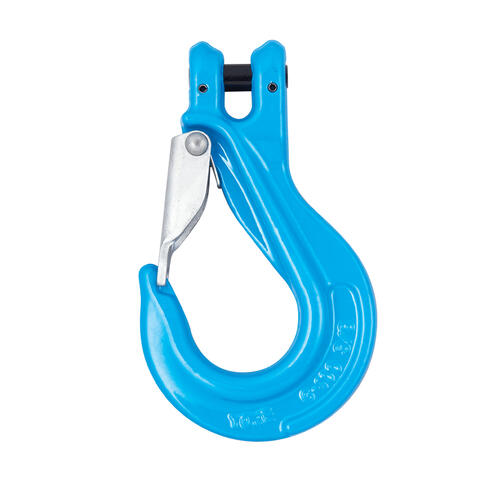

G100 Sling Hook Clevis w/Latch Yoke
Price range: $39.00 through $68.00
Heavy-duty Grade 100 clevis sling hook with latch, offering enhanced strength, secure load handling, and industry-compliant reliability.
Description
The G100 Sling Hook Clevis w/Latch Yoke is engineered for optimal lifting safety and efficiency, featuring at least 25% greater WLL than traditional G80 products. Manufactured from quenched and tempered alloy steel, it provides maximum durability and fatigue resistance, making it ideal for high-demand lifting operations.
Certified in accordance with EN 1677-2, ASME B30.26, ASME B30.10, and PAS1061, each hook is proof load tested at 2.5× WLL, ensuring exceptional strength and industry compliance. It has a design factor of 4:1, is fatigue rated for 20,000 cycles at 1.5× WLL, and undergoes Magnaflux crack detection on 100% of each batch, guaranteeing high-quality assurance.
Advantages:
- Secure latch mechanism
- 25% higher WLL than G80 hooks
- Batch tested for reliability
- Fatigue rated for durability
- Industry certified
What’s Included:
- 1 x G100 Sling Hook Clevis w/Latch Yoke (As per size selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 6mm, 8mm, 10mm |
