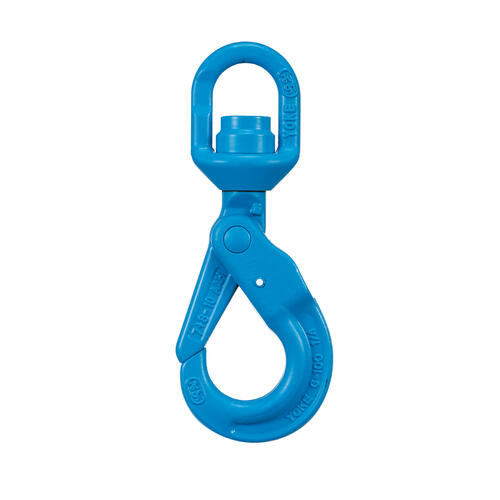

G100 Swivel Ball Bearing Self-Locking Hook Yoke
Price range: $186.00 through $262.00
High-performance Grade 100 swivel ball bearing self-locking hook, offering enhanced strength and secure lifting in industrial applications.
Description
The G100 Swivel Ball Bearing Self-Locking Hook Yoke is engineered for optimal lifting safety and efficiency, featuring at least 25% greater WLL than traditional G80 products. Manufactured from quenched and tempered alloy steel, this hook provides durability, reliability, and fatigue resistance for high-demand lifting operations.
Certified in accordance with EN 1677-3, ASME B30.26, ASME B30.10, and PAS1061, this self-locking hook undergoes rigorous proof load testing at 2.5× WLL, ensuring exceptional strength and industry compliance. Designed with a ball-bearing swivel mechanism, it enables full rotation under load, reducing chain twist and improving handling precision. Each batch is fatigue rated for 20,000 cycles at 1.5× WLL and Magnaflux crack detection is performed on 100% of production, guaranteeing high-quality assurance.
Advantages:
- 25% greater WLL than G80 hooks
- Ball-bearing swivel mechanism
- Self-locking safety design
- Certified to multiple industry standards
- Batch tested for reliability
What’s Included:
- 1 x G100 Swivel Ball Bearing Self-Locking Hook Yoke
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 6mm, 8mm, 10mm |
