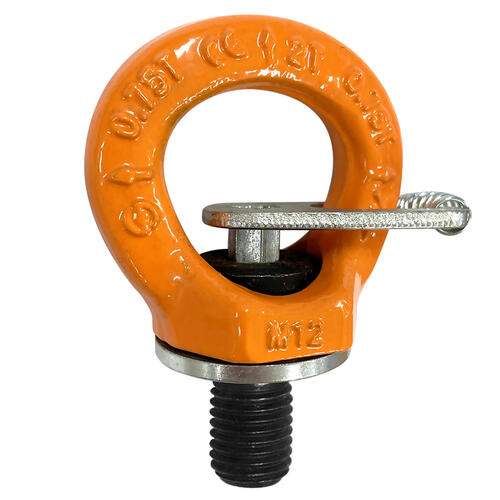

Stubby Lifting Eye Bolt Swivel Ring G100 Alloy Steel
$12.90 – $92.00
Swivel eye bolt with 360 degree rotation and 90 degree pivot manufactured from G100 alloy steel tested to AS2317 standards.
Description
The Stubby Eye Bolt is designed for swiveling load applications, featuring 360 degree rotation and 90 degree pivot movement for optimal load handling Manufactured from forged G100 alloy steel, quenched and tempered for durability, with an orange painted finish for corrosion resistance Tested in accordance with AS2317, this bolt is proof tested in two stages ensuring reliability Marked with working load limit WLL nominal size quality grade and supplier identification each unit undergoes 100 percent magnaflux crack detection for safety compliance.
Advantages:
- Swiveling load ring with 360 degree rotation and 90 degree pivot
- High strength forged G100 alloy steel construction
- Certified safety testing and proof load validation
- Magnaflux crack detection for reliability
- Two-stage proof testing for enhanced safety
- Corrosion-resistant orange painted finish
What’s Included:
- 1 x Stubby Eye Bolt (Size as selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

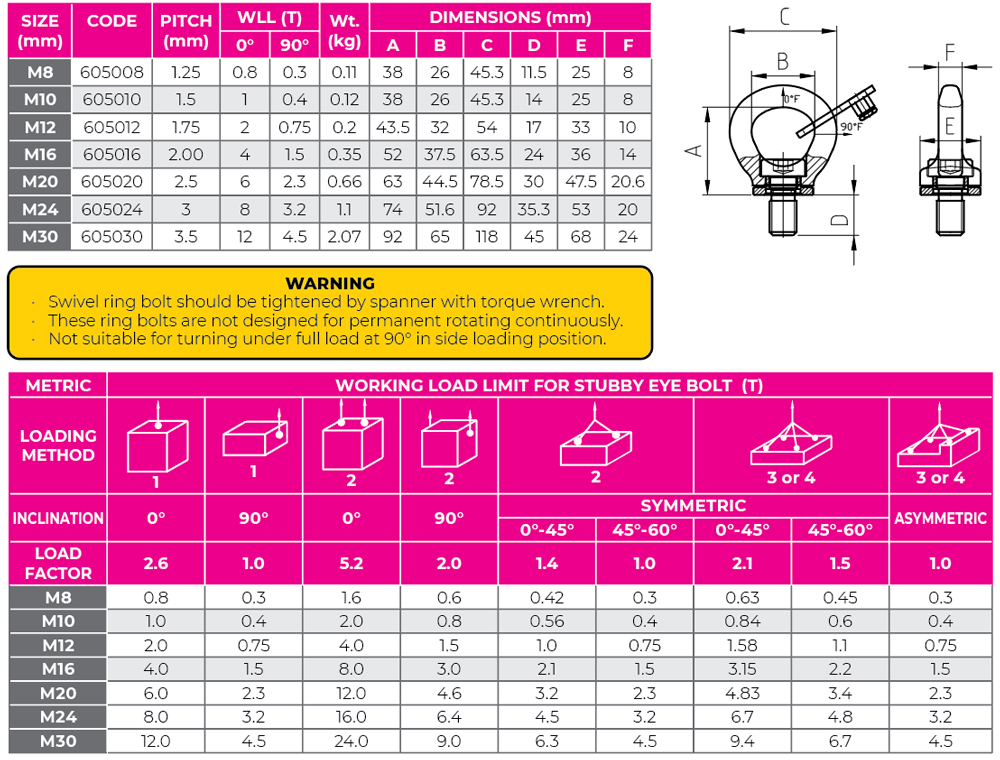

| Size | M8, M10, M12, M16, M20, M24, M30 |
