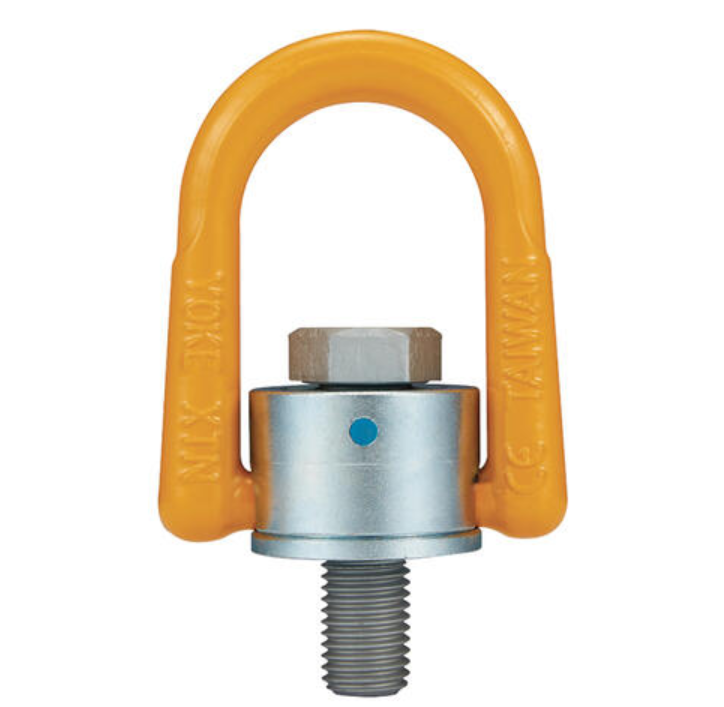

Anchor Point Digital Yoke 16mm 2T WLL 360° Rotation
$120.00
A forged alloy steel lifting point with 360° rotation and 180° pivot, ensuring reliable lifting from any direction.
In stock
Description

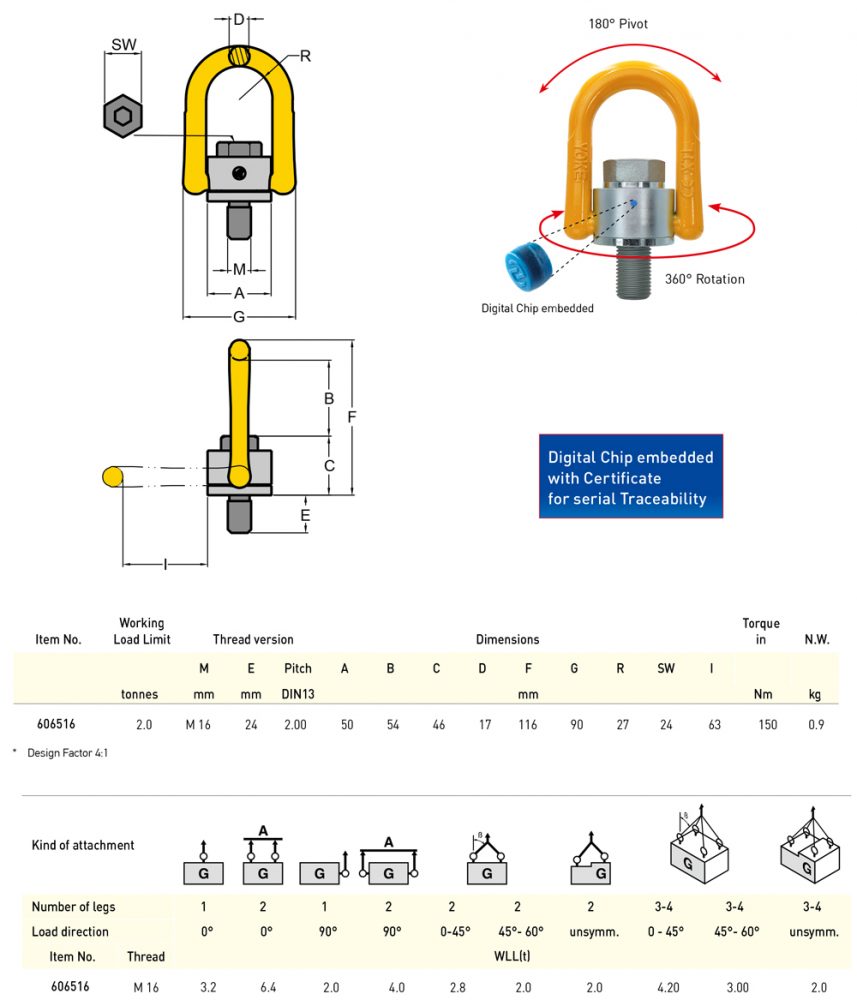

The Anchor Point Digital Yoke 606516 is a heavy-duty lifting point designed for maximum flexibility and reliability. It rotates 360° and pivots 180°, allowing lifting from any direction without compromising stability. Manufactured from forged alloy steel, quenched and tempered for enhanced strength, it meets EN1677-1 testing standards and is proof-tested to 2.5 times its working load limit (WLL). Each component is 100% magnaflux crack detected, ensuring structural integrity. This yoke is fatigue rated for 20,000 cycles at 1.5 times WLL, making it suitable for rigorous industrial applications. ASME B30.26 compliant and requiring only a tapped hole for installation, it offers a quick and efficient assembly process.
Advantages:
- Full rotation and pivot
- Heavy-duty alloy steel
- Certified safety testing
- High fatigue resistance
- Easy installation
- Reliable lifting performance
What’s Included:
- 1 x Anchor Point Digital Yoke (606516)
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 13.6 × 9 × 5 cm |
