The Bullet Style Lifting Swivels Yoke is made from high-grade, quenched, and tempered material, with a 1–5 ton working load limit and a 5:1 safety factor. It is 100% magnaflux crack-tested, fatigue-rated for 20,000 cycles at 1.5x WLL, and meets EN1677-1 and ASME B30.26 standards.
Special Order
Special Ordered Items have extended Delivery or Click & Collect timelines. Please purchase and we will organise the goods for you. Read More
BSLSY

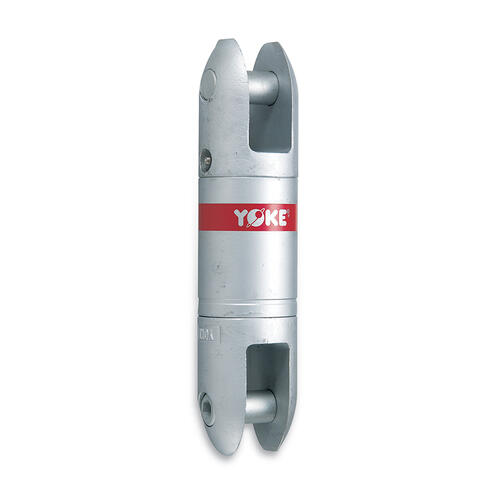

Bullet Style Lifting Swivels Yoke
Price range: $1,200.00 through $2,170.00
Description
The Bullet Style Lifting Swivels Yoke is designed for secure load lifting. Built using the highest grade of zinc plated material, it is quenched and tempered for durability. corrosion resistance and load-bearing strength. Manufactured and tested in accordance with standards. Manufactured specifically for a working load limit of 1 to 5 tons, includes a safety factor of 5-1. All Swivels parts are 100% magnaflux crack detected. The bullet style lifting swivel yoke has a 20,000 cycle fatigue rate to 1.5 times working load limit. This lifting point meets EN1677-1, ASME B30.26 Standards, ensuring reliability.
Advantages:
- Maximum ultimate load is 5 times the working load limit
- Maximum proof load is 2 times the working load limit
- High-strength zinc plated alloy steel
- Meets EN1677-1 and ASME B30.26 standards
- Safety factor of 5:1
- All parts with batch number for quality certified and traceability
What’s Included:
- 1 x Bullet Style Lifting Swivels Yoke (Capacity as selected)

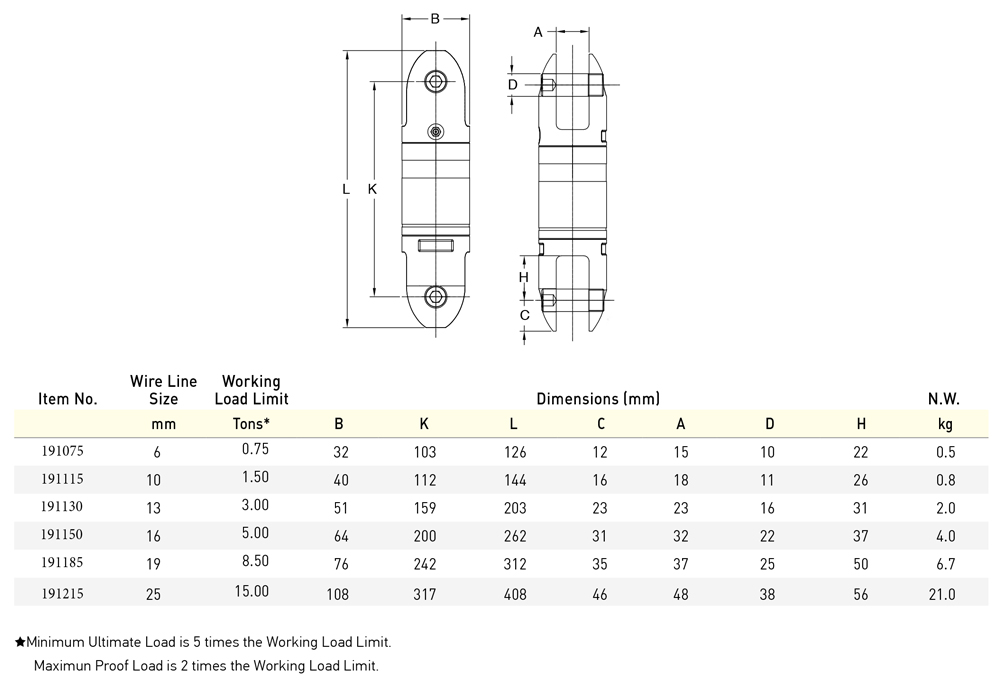

Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Weight Rating | 0.75, 1.5T, 3T, 5T |
