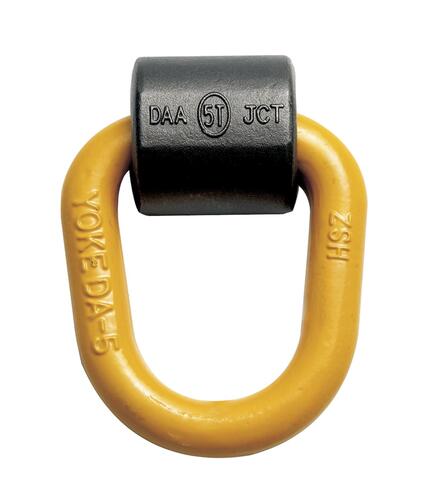

Classic Weld-On Point Yoke 180° Pivot Forged Alloy Steel
$38.00 – $70.00
Heavy-duty weld-on lifting point with 180° pivot, featuring a protected spring and forged alloy steel construction.
Description

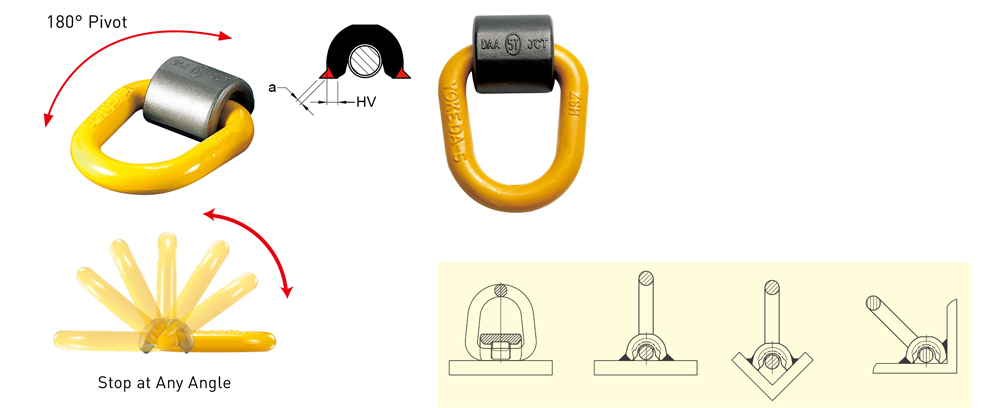

The Classic Weld-On Point Yoke Series is designed for secure lifting applications, offering a 180° pivot for controlled movement. Built from forged alloy steel, quenched and tempered for superior strength, it meets EN1677-1 standards for reliability. Every load-rated part undergoes 100% magnaflux crack detection and is traceable to Test Certification for safety assurance. Proof tested to 2.5 times the WLL, this yoke ensures durability in demanding environments. A protected spring system keeps the load ring stable, reducing noise caused by vibrations and ensuring precise load positioning. WLL is forged onto each product for quick identification, and integrated lugs assist the welding process for secure attachment.
Advantages:
- 180° pivot motion
- High-strength alloy steel
- Certified safety testing
- Crack detection verified
- Noise-reducing spring
- Assisted welding design
What’s Included:
- 1 x Classic Weld-On Point Yoke (Capacity as selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

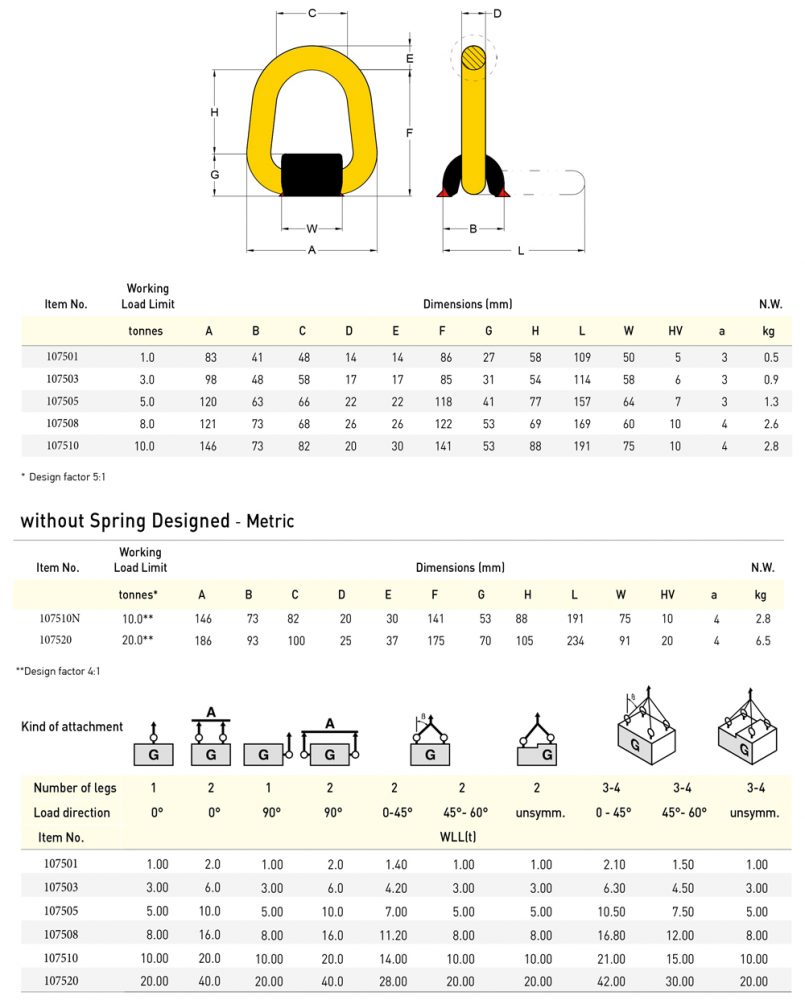

| Capacity | 1T, 3T, 5T |
