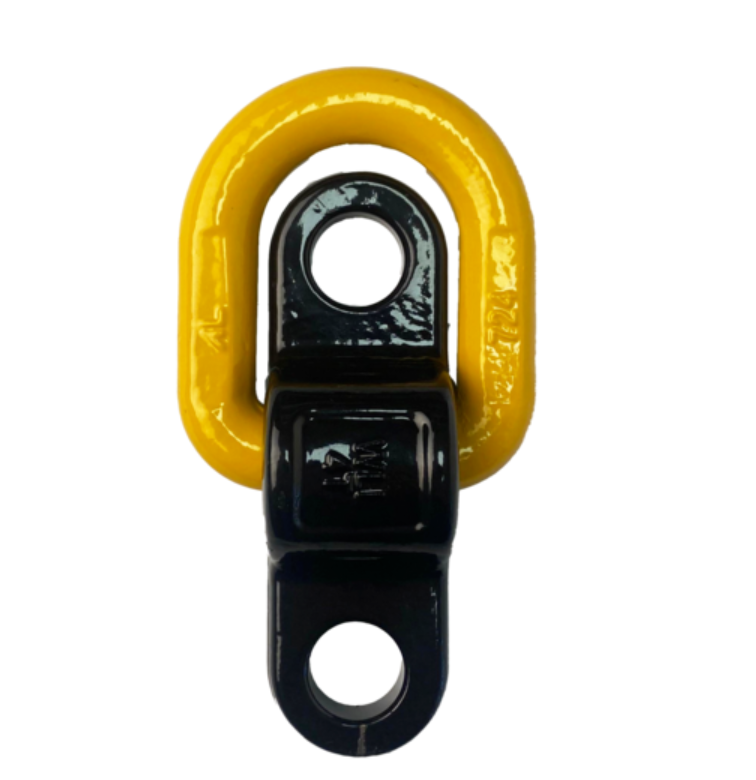

BOPC
Bolt-On Point Compact Side Load Lifting Forged G80 Alloy Steel
$11.00 – $55.00
Heavy-duty lifting point with 180° pivot for side load applications, made from quenched and tempered forged G80 alloy steel.
Description
The Bolt-On Point Compact Series is designed for secure side load lifting, featuring a 180° pivot for optimized performance. Manufactured from forged G80 alloy steel, it is quenched and tempered to ensure maximum durability and load-bearing strength. Tested in accordance with EN1677-1, all load-rated parts undergo 100% magnaflux crack detection and are traceable to Test Certification for safety assurance. Proof tested to 2.5 times the WLL, these lifting points provide consistent reliability in demanding environments.
Advantages:
- 180° pivot function
- High-strength alloy steel
- Certified safety standards
- Crack detection tested
- Proof tested for reliability
- Easy installation
What’s Included:
- 1 x Bolt-On Point Compact (Capacity as selected)

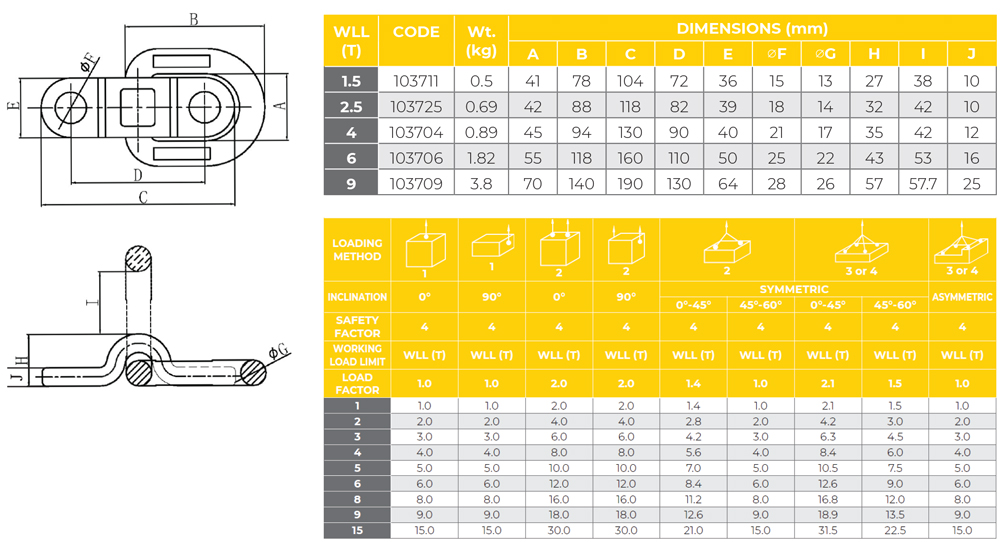

Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Weight Rating | 1.5T, 2.5T, 4T, 6T, 9T |
