ENBZ24

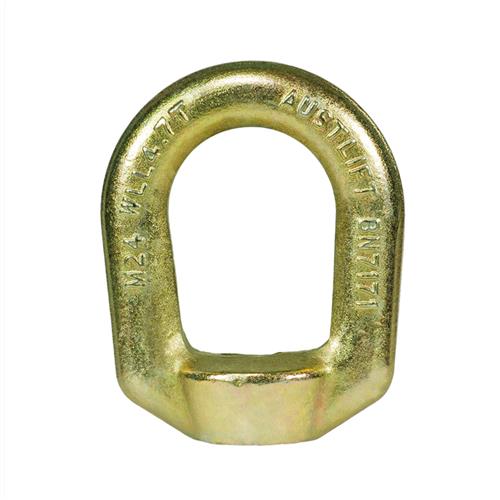

Eye Nut Bow Zinc 24mm

Name: Eye Nut Bow Zinc 24mm
SKU: ENBZ24
Availability: InStock

$16.00

Heavy-duty bow nut, compliant with ASME B30.26, designed as a removable hanging eye nut for rated male threads or bolts, commonly used in mining applications.

In stock

SKU: ENBZ24 Category: Lifting Hooks

Description
The Eye Nut Bow Zinc 24mm is manufactured from C15 carbon steel with a tempered zinc-plated finish, ensuring durability and corrosion resistance. Designed with a bow shape, it is available exclusively in metric thread sizes, making it ideal for industrial applications where secure lifting points are required.

This bow nut meets ASME B30.26 requirements, and is proof tested to twice the working load limit, with a minimum breaking force of five times the working load limit, guaranteeing reliable and secure performance in demanding environments.

Advantages:
- Removable hanging eye nut
- C15 carbon steel
- Marked for traceability
- Proof tested at 2× WLL
- Ideal for mining and industrial applications
What’s Included:
- 1 x Eye Nut Bow Zinc 24mm
Features
- Marked with WLL (tonnes), nominal size (mm), batch number, and supplier identification for full traceability.
- Minimum breaking force rated at 5× WLL, ensuring superior structural integrity.
- Designed for mining and industrial applications, enhancing reliability in heavy-use environments.

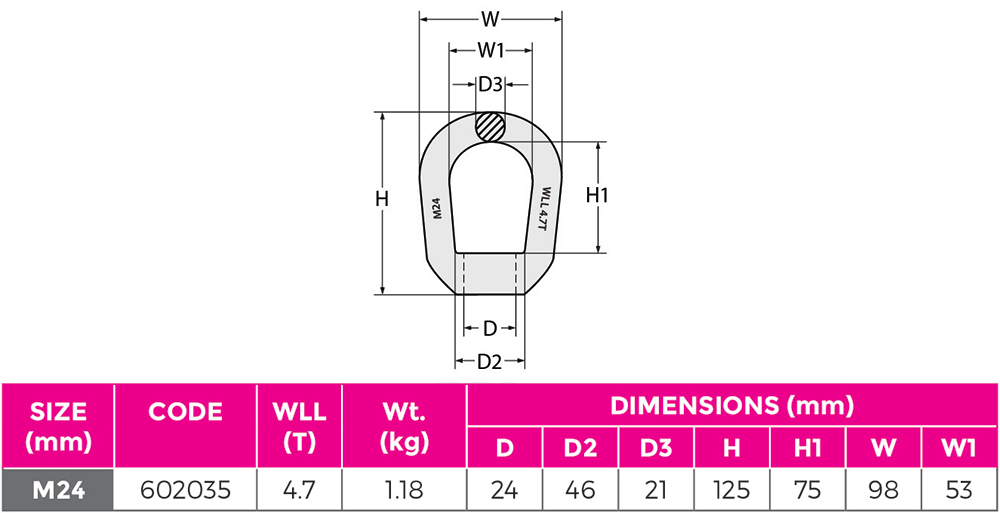

Specifications

Material

C15 carbon steel, tempered with zinc plating

Thread Type

Metric

Testing

Proof tested at 2× WLL, minimum breaking force of 5× WLL

Certification

ASME B30.26

Marking

WLL (tonnes), nominal size (mm), batch number, supplier ID

WLL

4.7T

Size (mm)

M24
