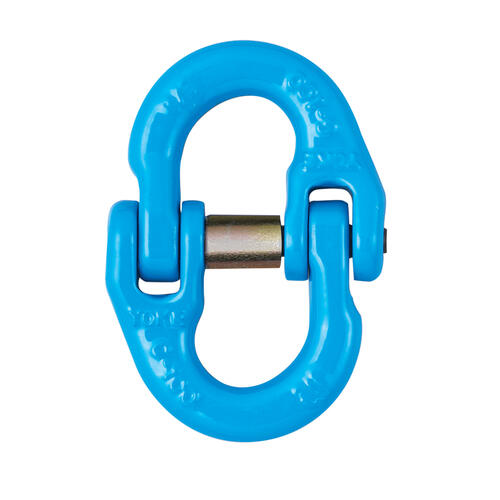

G100 Chain Connector Yoke
Price range: $20.00 through $41.00
This G100 chain connector yoke can be used as a connecting link between chains, as well as attaching the safety chain from the trailer to the vehicle.
Description
This G100 chain connector yoke provides a durable and reliable link between chains and can be used for a diverse range of purposes, including attaching safetychains to the vehicle. The connector is manufactured from G100 steel, which provides a 25% higher lifting capacity than G80. It is tested with a proof load at 2.5 times the Working Load Limit (WLL), fatigue-rated to 20,000 cycles at 1.5 times the WLL, and features a design factor of 4:1, ensuring extreme durability and strength. The chain connector is manufactured in accordance with EN 1677-1 and ASTM A952/A952M. The chain connector is commonly used to connect head rings, chains, hooks and other lifting components for chain and wire rope slings.
Advantages:
- 25% higher lifting capacity than grade 80
- Excellent durability due to G100 grade steel
- Wide application
- Locking pin included
- Suitable for both G80 and G100 chains
- Proof tested at 2.5 times WILL
- design factor of 4:1
What’s Included:
- 1 x G100 Chain Connector Yoke

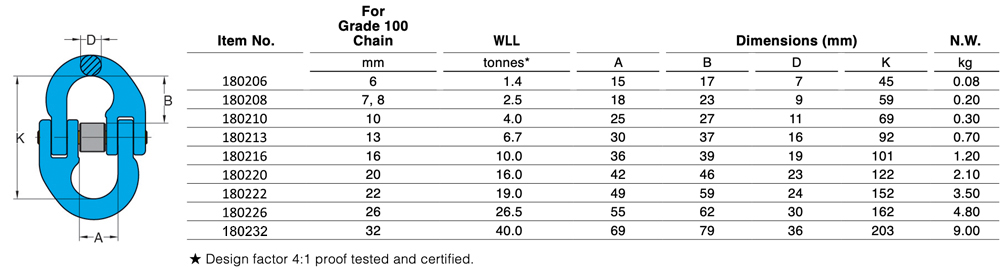

Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 10 × 5 × 5 cm |
| Size | 6mm, 8mm, 10mm, 13mm |
