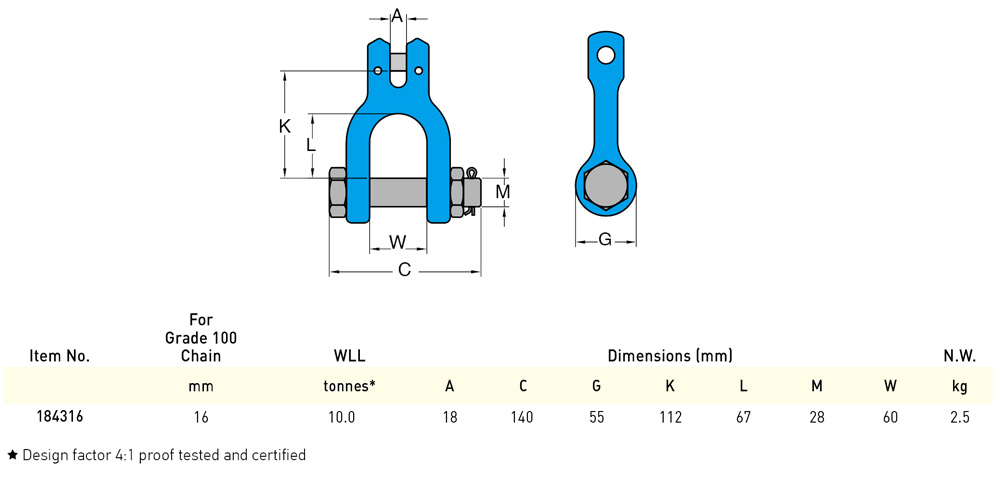

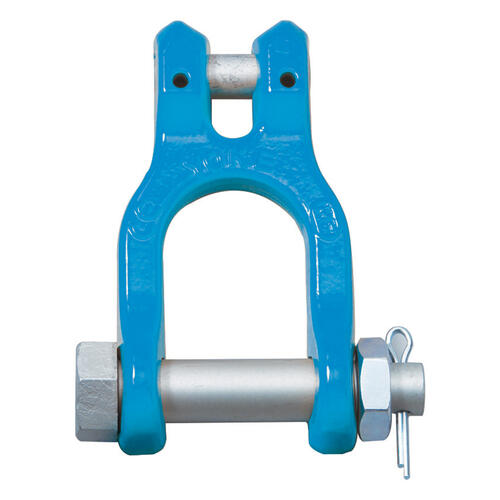

G100 Clevis Shackle Yoke 16mm
$390.00
Grade 80 yoke clevis shackle is designed for direct chain attachment as a terminal end connection.
In stock
Description
The G100 Yoke Clevis Shackle is engineered for secure terminal end connection in lifting and rigging applications. Designed to attach directly to chains at the clevis end, it ensures reliable load handling while maintaining compliance with industry standards EN 1677-1 and ASME B30.26. Each shackle is fatigue tested to 20,000 cycles at 1.5 times the WLL, proof tested at 2.5 times the WLL and manufactured with a design factor of 4:1 providing safety assurance, durability and performance in demanding operations.
Advantages:
- Strong G100 quenched and tempered alloy steel
- Secure connection
- Traceable marking
- Safety tested to industry standards EN 1677-1 and ASME B30.26
- Load reliability
What’s Included:
- 1 x G100 Clevis Shackle Yoke 16mm
Additional information
| Weight | 2.5 kg |
|---|---|
| Dimensions | 14 × 17 × 6 cm |
