FHCYG100

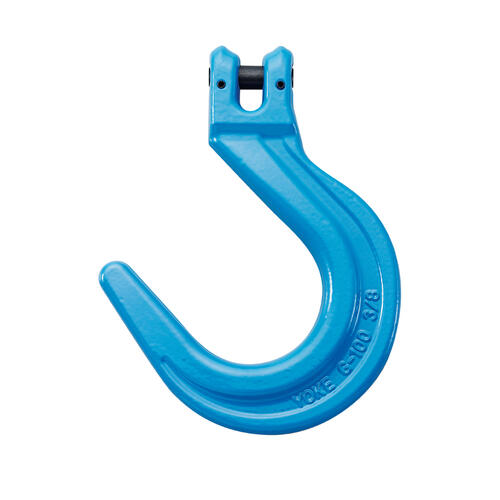

G100 Foundry Hook Clevis Yoke

Name: G100 Foundry Hook Clevis Yoke
SKU: FHCYG100
Availability: InStock

Price range: $50.00 through $155.00

Grade 100 foundry hook with clevis connection is designed to lift heavy things safe and efficiently in foundry and other applications.

Size

Make an Enquiry

SKU: FHCYG100 Category: G100 Fittings

Description
The Yoke G100 Foundry Hook Clevis Type FE is a specialized lifting component engineered for foundry and pipe lifting applications. Its large mouth opening provides secure and efficient load attachment, while the clevis connection enables easy chain attachment for streamlined operations. Each hook is proof tested to 2.5 times WLL, fatigue rated to 20,000 cycles at 1.5 times WLL and has a tempering temperature of 400°C, ensuing reliability.

Advantages:
- Strong steel
- Large opening
- Secure connection
- Traceable marking
- Safety tested – conforms to DIN PAS 1061, EN 1677-1 and ASTM A952/A952M
What’s Included:
- 1 x G80 Foundry Hook Clevis Type FE (As per size selected)
Features
- Large mouth opening enhances load attachment, making it ideal for lifting pipes and foundry applications.
- Clevis connection allows easy chain attachment, improving efficiency in lifting operations.
- Marked with chain size, batch number, and grade, ensuring full traceability and compliance with lifting regulations.
Specifications

Material

Quenched and tempered alloy steel

Finish

Powder Coat

Grade

G100

WLL

2.5T

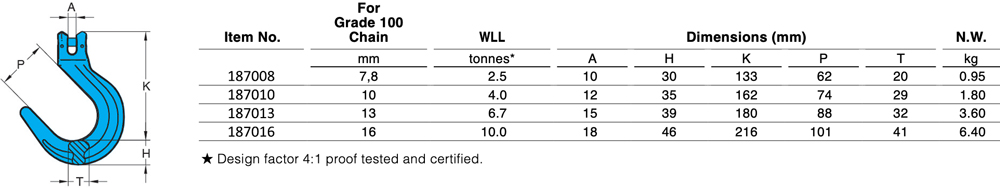

Dimensions

Refer to Photo

Safety Factor

4:1

Marking

Chain size, batch number, grade

Testing

Fatigue tested to 20,000 cycles at 1.5 times WLL, proof load tested at 2.5 times WLL

Tempering Temperature

400°C

Standards

DIN PAS 1061, EN 1677-1 and ASTM A952/A952M

Size

7,8mm

Code

187008

Material

High-strength alloy steel

Finish

Powder Coat

Grade

G100

WLL

4T

Dimensions

Refer to Photo

Safety Factor

4:1

Marking

Chain size, batch number, grade, and Austlift branding

Testing

Fatigue tested to 20,000 cycles at 1.5 times WLL, proof load tested at 2.5 times WLL

Tempering Temperature

400°C

Standards

DIN PAS 1061, EN 1677-1 and ASTM A952/A952M

Size

10mm

Code

187010

Material

High-strength alloy steel

Finish

Powder Coat

Grade

G100

WLL

6.7T

Dimensions

Refer to Photo

Safety Factor

4:1

Testing

Fatigue tested to 20,000 cycles at 1.5 times WLL, proof load tested at 2.5 times WLL

Marking

Chain size, batch number, grade

Tempering Temperature

400°C

Standards

DIN PAS 1061, EN 1677-1 and ASTM A952/A952M

Size

13mm

Code

187013

Material

Quenched and tempered alloy steel

Finish

Powder Coat

Grade

G100

WLL

2.5-6.7T

Dimensions

Refer to Photo

Safety Factor

4:1

Marking

Chain size, batch number, grade

Testing

Fatigue tested to 20,000 cycles at 1.5 times WLL, proof load tested at 2.5 times WLL

Tempering Temperature

400°C

Standards

DIN PAS 1061, EN 1677-1 and ASTM A952/A952M
