G100 Multi Link
Price range: $50.00 through $118.00
Heavy-duty Grade 100 pin lock clevis end yoke, designed for secure chain sling applications with enhanced strength and safety.
Description

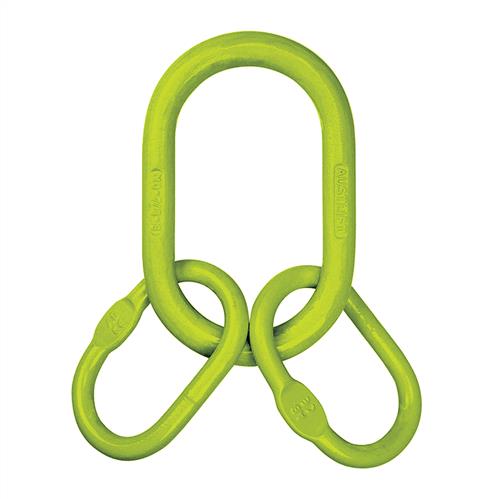

The G100 Multi Link is built for high-load lifting applications, featuring a large master ring with two intermediate links, allowing compatibility with multiple leg slings. Manufactured from quenched and tempered alloy steel, it provides at least 25% higher WLL than traditional G80 products, ensuring strength and reliability in rigging and lifting operations.
Complying with AS/NZS 3776 standards, each unit is batch tested and marked for full traceability, including single and double chain size, designation, grade, manufacturer mark, and Austlift branding.
Advantages:
- Supports two, three, and four-leg sling applications
- Marked for chain size, grade, and manufacturer traceability
- Batch tested for reliability
- 25% higher WLL than G80 components
- Industry certified
What’s Included:
- 1 x G100 Multi Link (As per size selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

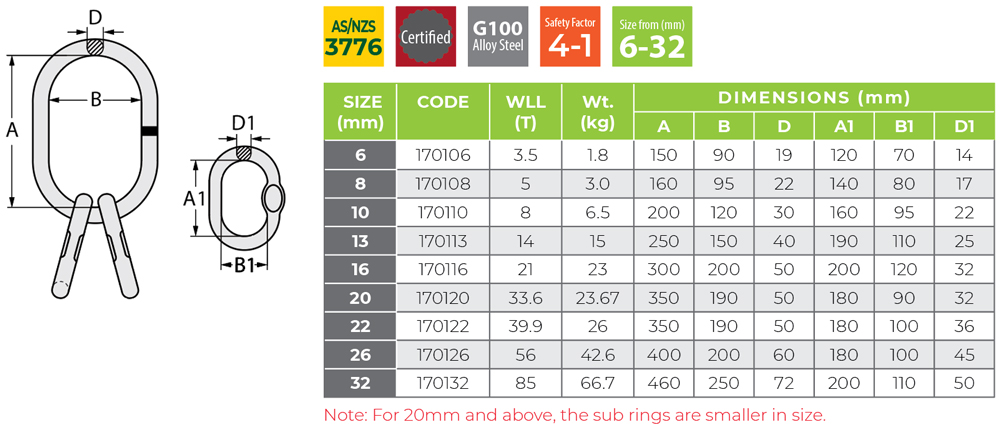

| Size | 6mm, 8mm, 10mm |
