ILBAL3

Industrial Lever Block AL3 Series

Name: Industrial Lever Block AL3 Series
SKU: ILBAL3
Availability: InStock

Price range: $173.00 through $652.00

Heavy-duty industrial lever blocks with ball-bearing swivel hooks—available in multiple lift heights and capacities for certified hoisting and pulling applications.

Length (m)

WLL (T)

Make an Enquiry

SKU: ILBAL3 Category: Material Handling

Description
The Austlift AL-3 Series Industrial Lever Blocks are designed for general-purpose hoisting and pulling across mining, construction, industrial, and domestic environments. Available in multiple lift heights and working load limits, these units are ideal for short-lift applications and confined spaces.

Each unit features a robust steel body, precision gearing, and a ball-bearing swivel hook for smooth rotation under load. All models are tested to 150% of rated capacity and supplied with compliance certification.

Advantages:
- Multiple WLL options
- 1.5M, 3M, and 6M lift heights
- Ball bearing swivel hook
- Compact & portable
- Durable steel construction
- Certified & tagged
What’s Included:
- 1 x Industrial Lever Block AL3 Series (As per Length , WLL Selected)
Features
- Designed for short-lift hoisting and pulling in industrial and domestic settings
- Ball bearing swivel hook allows smooth rotation under load
- Lightweight and compact for easy handling and transport

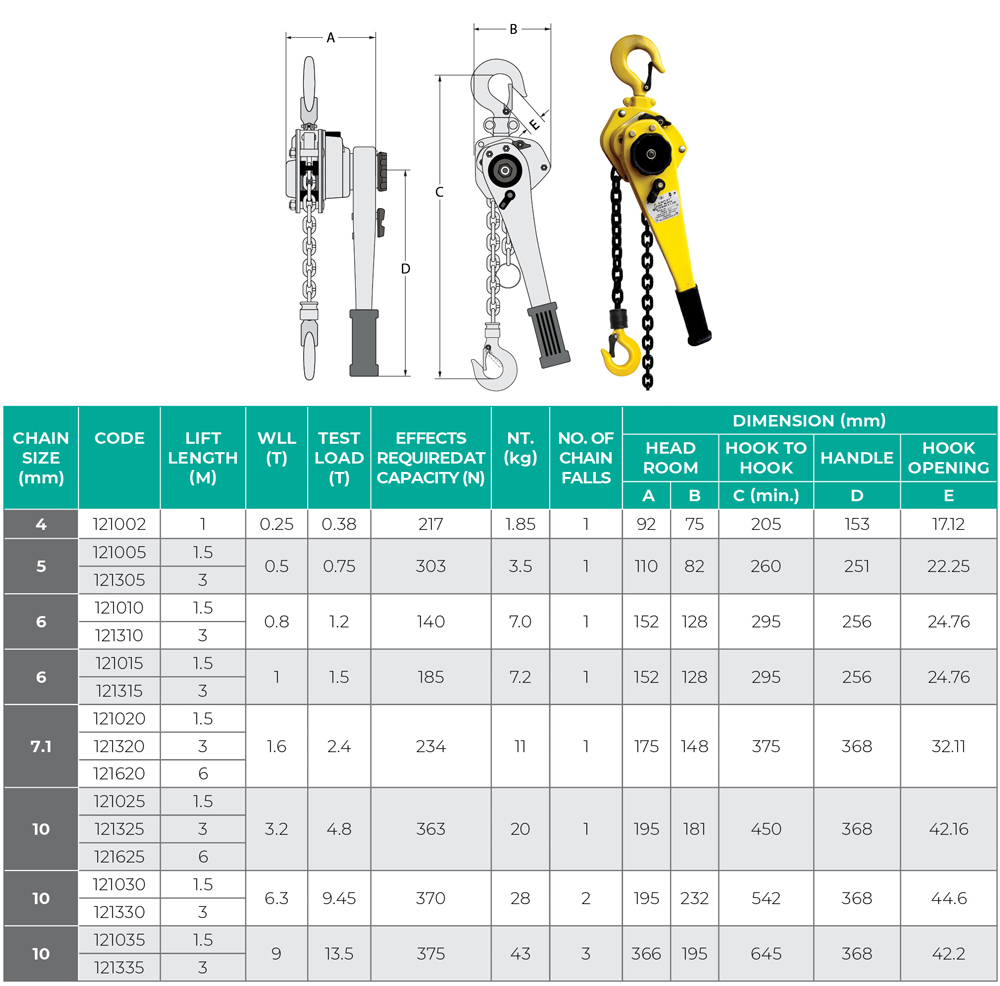

Specifications

Model

AL-3

Size (mm)

5

WLL (T)

0.5

Lift Length (m)

1.5

Test Load (T)

0.75

Effort Required at Capacity (N)

303

Net Weight (kg)

3.5

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

260

Handle Length (mm)

251

Hook Opening (mm)

22.25

Code

121005

Model

AL-3

Size (mm)

6

WLL (T)

0.8

Lift Length (m)

1.5

Test Load (T)

1.2

Effort Required at Capacity (N)

140

Net Weight (kg)

7.0

No. Of Chain Falls

1

Hook to Hook (Min.) (mm)

295

Handle Length

256

Hook Opening

24.76

Code

121010

Model

AL-3

Size (mm)

6

WLL (T)

1

Lift Length (m)

1.5

Test Load (T)

1.5

Effort Required at Capacity (N)

185

Net Weight (kg)

7.2

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

295

Handle Length

256

Hook Opening

24.76

Code

121015

Model

AL-3

Size (mm)

7.1

WLL (T)

2.4

Standard Lift Height (m)

1.5

Test Load (T)

2.4

Effort Required at Capacity (N)

234

Net Weight (kg)

11

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

375

Handle Length (mm)

368

Hook Opening (mm)

32.11

Code

121020

Model

AL-3

Size (mm)

5

Lift Length (m)

3.0

Test Load (T)

0.75

Effort Required at Capacity (N)

303

Net Weight (kg)

3.5

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

260

Handle Length (m)

251

Hook Opening (m)

22.25

Code

121305

Model

AL-3

Size (mm)

WLL (T)

Lift Length (m)

Test Load (T)

Effort Required at Capacity (N)

Net Weight (kg)

No. of Chain Falls

Hook to Hook (Min.) (mm)

Handle Length (m)

Hook Opening (m)

Code

Model

AL-3

Size (mm)

6

WLL (T)

1

Lift Length (m)

3

Test Load (T)

1.5

Effort Required at Capacity (N)

185

Net Weight (kg)

7.2

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

295

Handle Length (m)

256

Hook Opening (m)

24.76

Code

121315

Model

AL-3

Sze (mm)

7.1

WLL (T)

1.6

Lift Length (m)

3.0

Test Load (T)

2.4

Effort Required at Capacity (N)

234

Net Weight (kg)

11

No. of Chain Falls

1

Hook to Hook (Min.)

375

Handle Length (m)

368

Hook Opening (m)

32.11

Code

121320

Model

AL-3

Size (mm)

7.1

WLL (T)

1.6

Lift Length (m)

6.0

Test Load (T)

2.4

Effort Required at Capacity (N)

234

Net Weight (kg)

11

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

375

Handle Length (m)

368

Hook Opening (m)

32.11

Code

121620

Model

AL-3

Size (mm)

10

WLL (T)

3.2

Lift Length (m)

6.0

Test Load (T)

4.8

Effort Required at Capacity (N)

363

Net Weight (kg)

20

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

450

Handle Length (m)

368

Hook Opening

42.16

Code

121625

Type

Industrial Lever Block

Model

AL-3 Series

Material

High-strength steel

Hook Type

Ball Bearing Swivel Hook

Compliance

AS 1418.2

Traceability

Serial Numbered, Tagged, Certified
