ILBAL5FW

Industrial Lever Block AL5 Free Wheeler Series

Name: Industrial Lever Block AL5 Free Wheeler Series
SKU: ILBAL5FW
Availability: InStock

Price range: $173.00 through $652.00

Heavy-duty lever blocks with free-wheeling trigger, overload safety brake, and luminous latch hooks—engineered for certified lifting and pulling applications.

Length (m)

WLL (T)

Make an Enquiry

SKU: ILBAL5FW Category: Material Handling

Description
The AL-5 Free Wheeler Series Industrial Lever Blocks are designed for versatile lifting and pulling in mining, construction, and industrial environments. Featuring a G80 alloy steel load chain with black oxide finish, these units offer dual security through alloy steel double pawls and sprockets.

The luminous latch hook provides a wide opening and reinforced grip for easier load engagement. A heavy-duty trigger enables quick chain take-up in freewheeling mode, while the integrated safety brake prevents accidental release under load. The double plate handle and rubber grip ensure safe and stable operation in both vertical and horizontal positions.

Advantages:
- Free-wheeling trigger
- Overload safety brake
- G80 alloy steel chain
- Luminous latch hook
- Dual pawl security
- Certified to AS/NZS 1418.2
What’s Included:
- 1 x Industrial Lever Block AL5 Free Wheeler Series (As per Length , WLL Selected)
Features
- Heavy-duty trigger for up/down and freewheeling control
- Rubber grip handle reduces hand slippage during tensioning
- Suitable for vertical and horizontal lifting applications

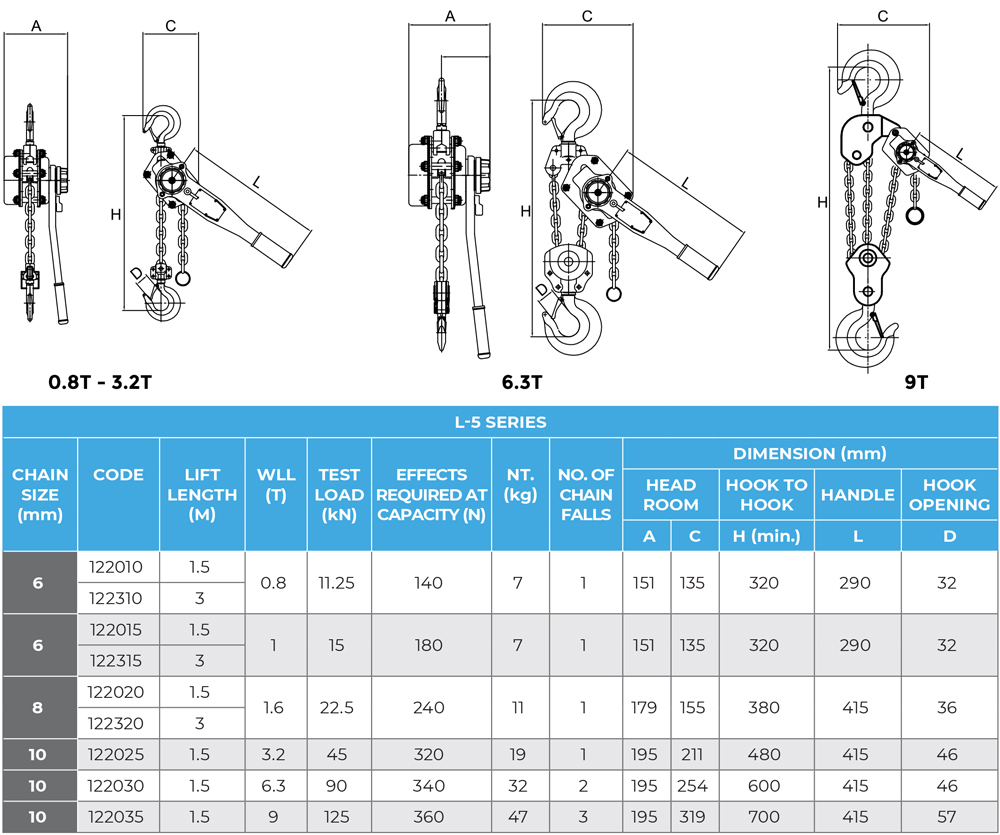

Specifications

Type

Industrial Lever Block

Model

AL-5 Free Wheeler

Material

High-strength alloy steel

Chain Grade

G80, black oxide finish

Hook Type

High-strength with luminous latch

Compliance

AS/NZS 1418.2

Traceability

Serial Numbered, Tagged, Certified

Chain Size (mm)

6

WLL (T)

0.8

Lift Length (m)

1.5

Test Load (T)

11.25

Effort Required at Capacity (N)

140

Net Weight (kg)

7.0

No. Of Chain Falls

1

Hook to Hook (Min.) (mm)

320

Handle Length (mm)

290

Hook Opening (mm)

32

Code

122010

Model

AL-3

Size (mm)

6

WLL (T)

1

Lift Length (m)

1.5

Test Load (T)

1.5

Effort Required at Capacity (N)

185

Net Weight (kg)

7.2

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

295

Handle Length

256

Hook Opening

24.76

Code

121015

Model

AL-3

Size (mm)

7.1

WLL (T)

2.4

Standard Lift Height (m)

1.5

Test Load (T)

2.4

Effort Required at Capacity (N)

234

Net Weight (kg)

11

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

375

Handle Length (mm)

368

Hook Opening (mm)

32.11

Code

121020

Model

AL-3

Size (mm)

5

WLL (T)

0.5

Lift Length (m)

1.5

Test Load (T)

0.75

Effort Required at Capacity (N)

303

Net Weight (kg)

3.5

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

260

Handle Length (mm)

251

Hook Opening (mm)

22.25

Code

121005

Model

AL-3

Size (mm)

7.1

WLL (T)

1.6

Lift Length (m)

6.0

Test Load (T)

2.4

Effort Required at Capacity (N)

234

Net Weight (kg)

11

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

375

Handle Length (m)

368

Hook Opening (m)

32.11

Code

121620

Model

AL-3

Size (mm)

10

WLL (T)

3.2

Lift Length (m)

6.0

Test Load (T)

4.8

Effort Required at Capacity (N)

363

Net Weight (kg)

20

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

450

Handle Length (m)

368

Hook Opening

42.16

Code

121625

Model

AL-3

Size (mm)

WLL (T)

Lift Length (m)

Test Load (T)

Effort Required at Capacity (N)

Net Weight (kg)

No. of Chain Falls

Hook to Hook (Min.) (mm)

Handle Length (m)

Hook Opening (m)

Code

Model

AL-3

Size (mm)

6

WLL (T)

1

Lift Length (m)

3

Test Load (T)

1.5

Effort Required at Capacity (N)

185

Net Weight (kg)

7.2

No. of Chain Falls

1

Hook to Hook (Min.) (mm)

295

Handle Length (m)

256

Hook Opening (m)

24.76

Code

121315

Model

AL-3

Sze (mm)

7.1

WLL (T)

1.6

Lift Length (m)

3.0

Test Load (T)

2.4

Effort Required at Capacity (N)

234

Net Weight (kg)

11

No. of Chain Falls

1

Hook to Hook (Min.)

375

Handle Length (m)

368

Hook Opening (m)

32.11

Code

121320

Type

Industrial Lever Block

Model

AL-5 Free Wheeler

Material

High-strength alloy steel

Chain Grade

G80, black oxide finish

Hook Type

High-strength with luminous latch

Compliance

AS/NZS 1418.2

Traceability

Serial Numbered, Tagged, Certified
