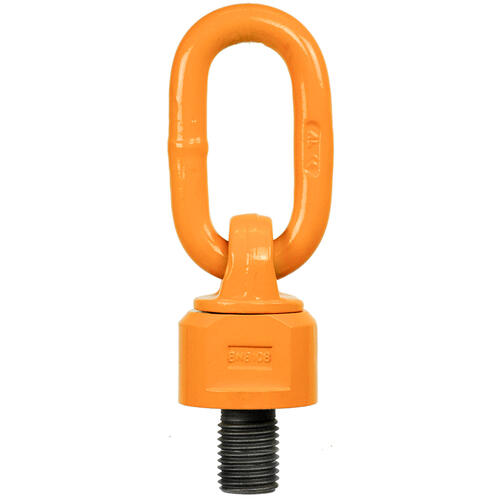

Oblong Eye Bolt Swivel Ring G80 Alloy Steel
$26.95 – $120.00
Swivel ring bolt with ball bearing rotation manufactured from G80 alloy steel tested to EN818 4 and AS2318 standards
Description
The Oblong Eye Bolt Series is designed for dynamic lifting applications featuring a swivel ring capable of rotating under load due to ball bearing rings Manufactured from G80 alloy steel with an orange painted finish these bolts are manufactured with an oval link and available in metric thread sizes from 8mm to 36mm Each bolt meets EN818 4 load ring standards and AS2318 swivel component specifications ensuring reliable performance Marked with working load limit WLL nominal size quality grade and supplier identification for compliance Proof tested to 1.25 times the WLL for maximum safety Test certificates are available upon request.
Advantages:
- Swivel ring rotates under load for dynamic lifting
- High strength G80 alloy steel construction
- Certified safety testing and proof load validation
- Marked for easy identification and compliance
- Ball bearing rings for smooth rotation
- Durable orange painted finish
What’s Included:
- 1 x Oblong Eye Bolt (As per size selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

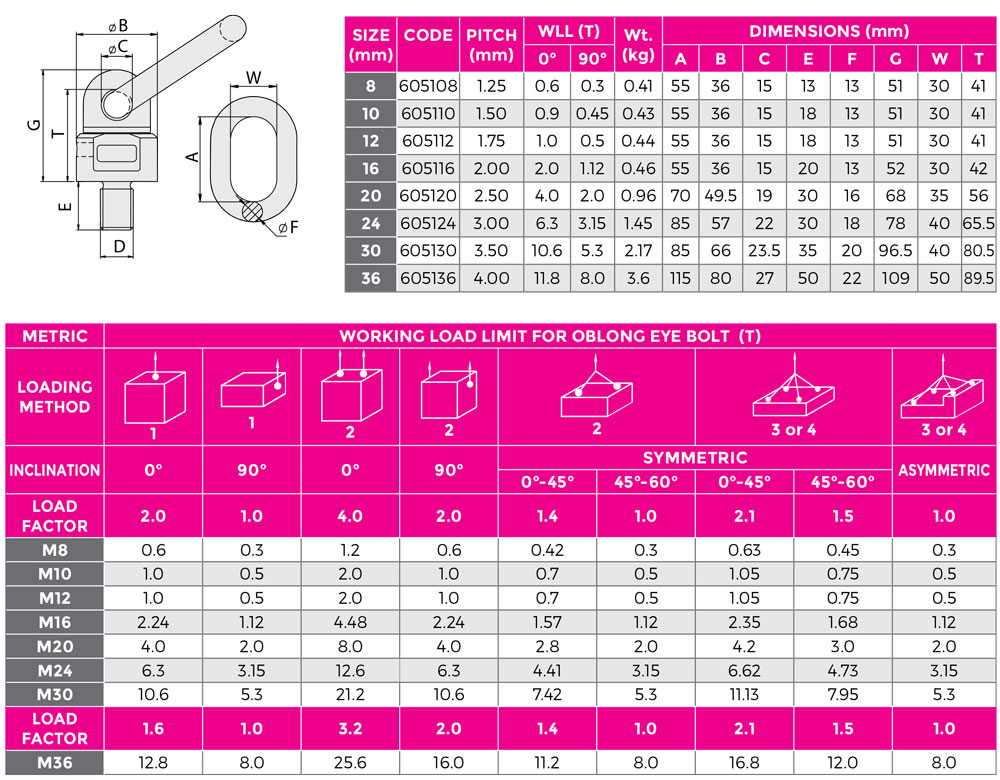

| Size | M8, M10, M12, M16, M20, M24, M30 |
