SLPYLT

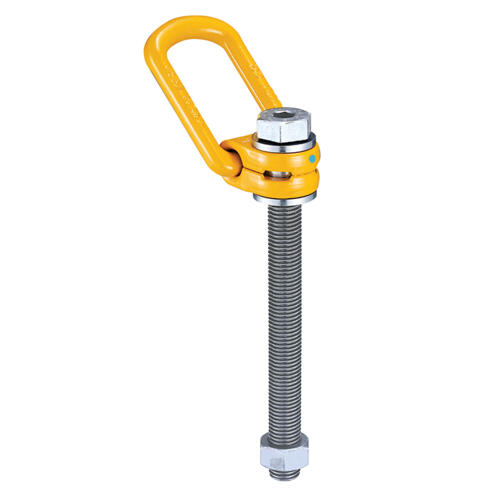

Swivel Lifting Point Long Thread Yoke

$119.00 – $237.00

Swivel lifting point with extended thread length, featuring 360-degree rotation and 90-degree pivot, manufactured from alloy steel, tested to EN1677-1 and DGUV GS OA 15-04 standards.

SLPYLT0.3T
SLPYLT0.63T
SLPYLT1T
SLPYLT1.5T
SLPYLT2.5T
Make an Enquiry
Delivery Quote

SKU: SLPYLT Category:
  • Description

    The Swivel Lifting Point Long Thread Yoke is designed for dynamic load handling, featuring 360-degree rotation and 90-degree pivot for flexible lifting applications. Manufactured from quenched and tempered alloy steel, it meets EN1677-1 standards and is tested for load integrity and durability. All load-rated components are 100% magnaflux crack detected, ensuring maximum safety and compliance. The individually forged parts and cap screw are traceable to test certification, providing full identification. This lifting point incorporates metric-thread bolts (ASME / ANSI B18.3.1M) for secure installation. Proof tested to 2.5 times WLL and fatigue rated to 1.5 times WLL, this unit meets or exceeds ASME B30.26 safety requirements. Quick and simple assembly requiring only a tapped hole, making it highly adaptable for industrial use.

    Advantages:

    • 360° rotation
    • 90° pivot
    • Forged alloy steel
    • Extended thread length
    • Certified for safety
    • Quick installation



    What’s Included:

    • 1 x Swivel Lifting Point Long Thread Yoke (Size as selected)
  • Features
    • 360-degree rotation with 90-degree pivot enables precise multidirectional lifting, ensuring flexibility in load positioning.
    • Forged alloy steel construction, quenched and tempered, delivers superior strength and load resistance.
    • Load-rated parts undergo 100% magnaflux crack detection, providing safety assurance and full reliability.
  • Specifications
    Standard
    EN1677-1, ASME B30.26
    Thread Type
    Metric thread (ASME / ANSI B18.3.1M)
    Testing
    Proof tested at 2.5 times WLL
    Fatigue Rating
    1.5 times WLL
    Material Inspection
    100% magnaflux crack detected
    Traceability
    Individual forged parts and cap screw batch-coded
    Installation
    Requires a tapped hole for quick and simple assembly

Description

The Swivel Lifting Point Long Thread Yoke is designed for dynamic load handling, featuring 360-degree rotation and 90-degree pivot for flexible lifting applications. Manufactured from quenched and tempered alloy steel, it meets EN1677-1 standards and is tested for load integrity and durability. All load-rated components are 100% magnaflux crack detected, ensuring maximum safety and compliance. The individually forged parts and cap screw are traceable to test certification, providing full identification. This lifting point incorporates metric-thread bolts (ASME / ANSI B18.3.1M) for secure installation. Proof tested to 2.5 times WLL and fatigue rated to 1.5 times WLL, this unit meets or exceeds ASME B30.26 safety requirements. Quick and simple assembly requiring only a tapped hole, making it highly adaptable for industrial use.

Advantages:

  • 360° rotation
  • 90° pivot
  • Forged alloy steel
  • Extended thread length
  • Certified for safety
  • Quick installation



What’s Included:

  • 1 x Swivel Lifting Point Long Thread Yoke (Size as selected)

Additional information

Weight N/A
Dimensions N/A
Size

8mm, 10mm, 12mm, 16mm, 20mm
