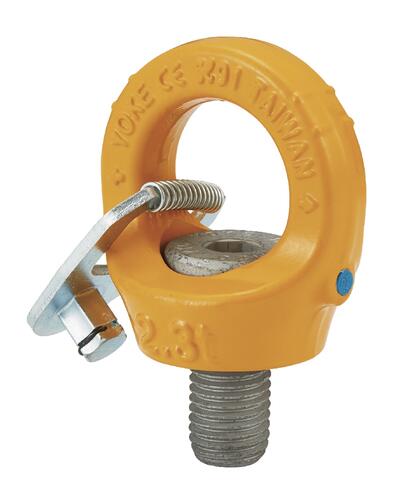

Lifting Point with Key Yoke
$75.00 – $220.00
Heavy duty lifting point with 360 degree rotation manufactured from alloy steel tested to EN1677 1 and DGUV GS OA 15 04 standards
Description
The Lifting Point with Key Yoke is designed for precise load handling and lifting flexibility featuring 360 degree rotation and directional adjustment Manufactured from quenched and tempered alloy steel it meets EN1677 1 standards and is certified by DGUV GS OA 15 04 ensuring superior durability and reliability Load rated components are 100 percent magnaflux crack detected and individually traceable to test certification Bolts are metric threaded for compatibility and the unit is proof tested to 2.5 times the WLL Additionally it is fatigue rated for 20000 cycles at 1.5 times WLL meeting or exceeding ASME B30.26 safety standards Quick and simple assembly requiring only a tapped hole.
Advantages:
- 360 degree rotation for versatile load adjustment
- High strength alloy steel construction
- Certified safety testing and proof load validation
- Magnaflux crack detection for reliability
- Fatigue tested for endurance
- Quick and simple installation process
What’s Included:
- 1 x Lifting Point with Key Yoke (As per size selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 10mm, 12mm, 16mm, 20mm, 24mm, 30mm |
