RC6000P

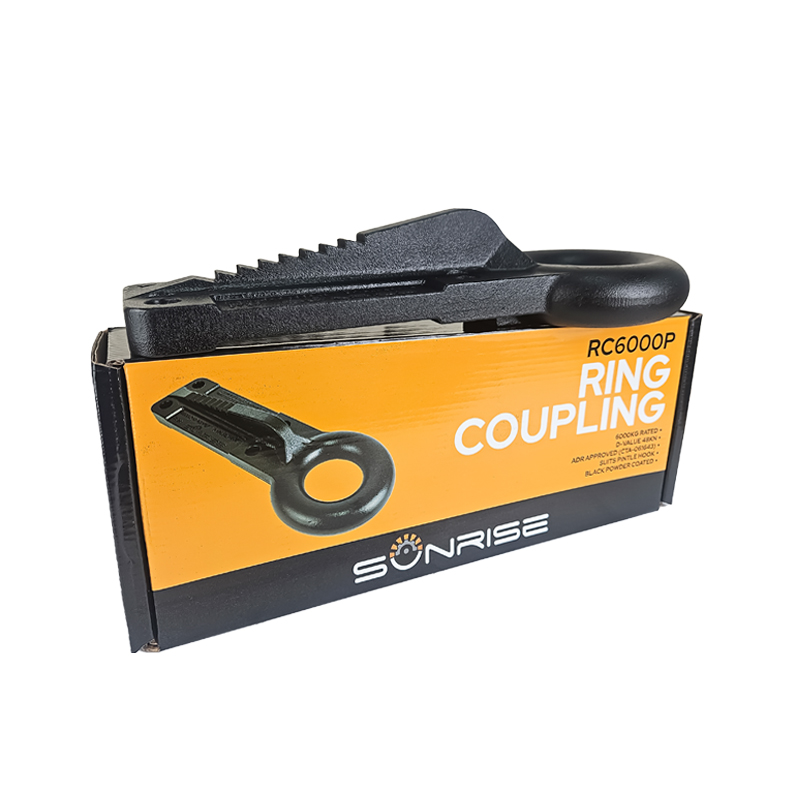

Sunrise Premium Pintle Ring Coupling 6T Rated

$185.00

Fixed ring coupling with 6000kg (6T) rating and black finish. Suited for trailers with a GTW less than 6000kg and used in conjunction with a pintle hook. ADR Approved and Tested. New Product Introduction Online Special Price.

In stock

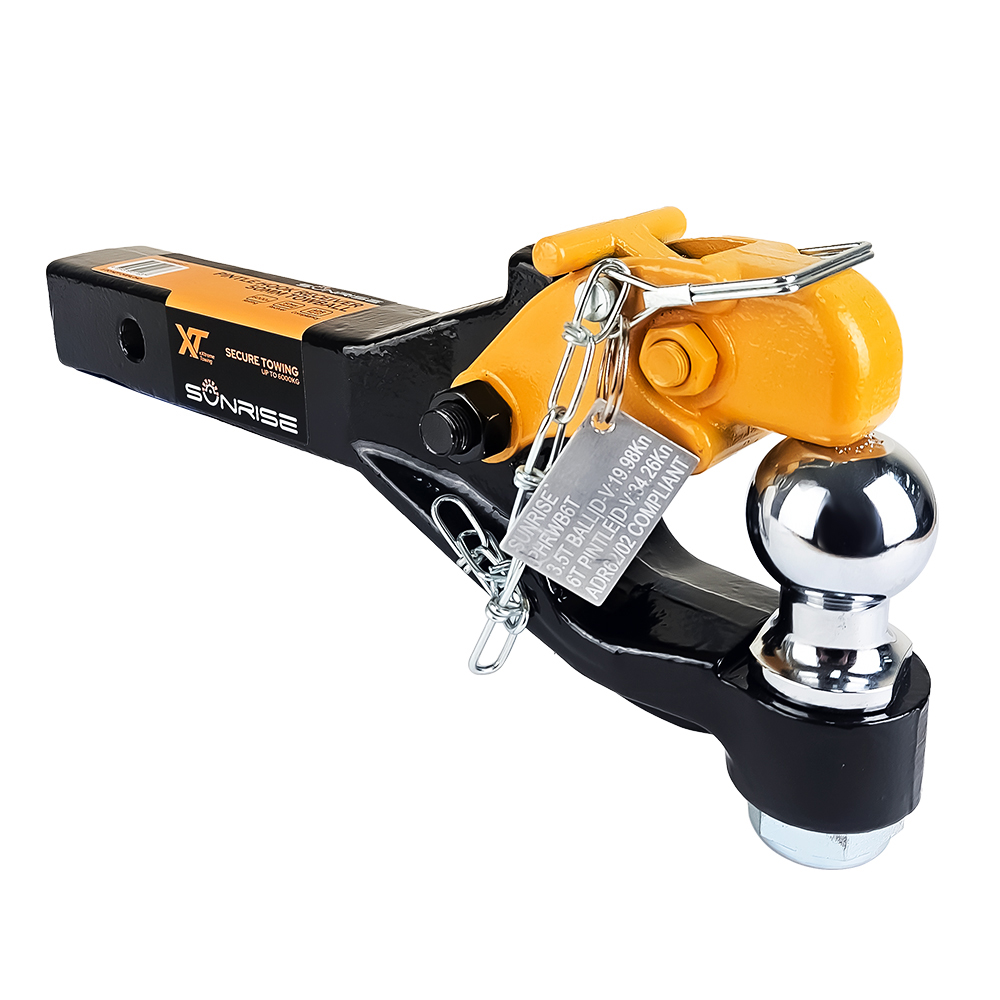

Pintle Hook Receiver 50mm Ball 6T Suit 50mm Towbar

The pintle hook with receiver arm and towball provides a versatile solution for industrial, agricultural and mining trailers that carry heavy loads on rough terrain and for those who want to enjoy a smoother ride.

Bolt Kit Ring Coupling 12.9HT M16 Cap Screw Set of 4

Four piece M16 bolt kit, bolt nut and washer included grade 12.9 alloy steel black finish.

Make an Enquiry
Delivery Quote

SKU: RC6000P Categories: , ,
  • Description

    Fixed ring coupling suited to trailers with a GTW less than 6000kg, often used for attaching trailers to heavy commercial trucks, or for driving over rough and uneven terrain. Used in conjunction with a pintle hook, this coupling gives you a rating of 6000kg (6T) and has a D-Value of 48kN. This coupling is built to last the harsh Australian weather due to its corrosion resistance. Dynamically tested & Compliant to ADR 62/02 Mechancial connections between vehicles. Component Type Approval Number CTA-061643. This coupling is ADR approved and tested. All four bolt holes must be fastened with M16 class 12.9 high tensile bolts.

    Advantages

    • Corrosion resistant
    • Solid construction
    • Easy installation
    • Pintle hook connection
    • Enhanced capacity
    • Secure attachment



    What’s Included

    • 1x Ring Coupling 6T Rated
  • Features
    • Suits a wide variety of pintle hooks for the perfect universal connection
    • Coupling is protected from harsh Australian weather and is built to last
    • Primarily used in applications where a connection to a heavy commercial truck is needed
  • Specifications
    Suits
    Pintle Hook
    Rating
    6000kg (6T)
    Bolt Pattern
    185 x 55mm
    Hole Diameter
    17mm
    Centre of ring to first hole
    116mm
    Ring ID
    75mm / 3"
    Ring OD
    160mm
    Finish
    Black
    Application
    Bolt On (Use 4 x M16 Class 12.9 High Tensile)
    D-Value
    48kN
    ADR
    ADR 62/02 Approved & Tested
    CTA Number
    CTA-061643

Description

Fixed ring coupling suited to trailers with a GTW less than 6000kg, often used for attaching trailers to heavy commercial trucks, or for driving over rough and uneven terrain. Used in conjunction with a pintle hook, this coupling gives you a rating of 6000kg (6T) and has a D-Value of 48kN. This coupling is built to last the harsh Australian weather due to its corrosion resistance. Dynamically tested & Compliant to ADR 62/02 Mechancial connections between vehicles. Component Type Approval Number CTA-061643. This coupling is ADR approved and tested. All four bolt holes must be fastened with M16 class 12.9 high tensile bolts.

Advantages

  • Corrosion resistant
  • Solid construction
  • Easy installation
  • Pintle hook connection
  • Enhanced capacity
  • Secure attachment



What’s Included

  • 1x Ring Coupling 6T Rated

Additional information

Weight 6 kg
Dimensions 40 × 20 × 18 cm
