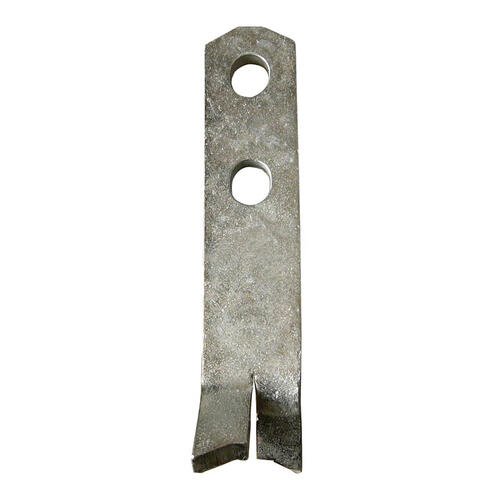

Spread Anchor

Name: Spread Anchor
SKU: SA
Availability: InStock

Price range: $2.00 through $4.00

Austlift high-strength spread anchor, designed for lifting precast concrete girders, plates, and other structural elements.

WLL

Make an Enquiry

SKU: SA Category: G80 Fittings

Description
The Spread Anchor is manufactured from high-strength low alloy steel plates, ensuring excellent tensile strength and elongation for secure lifting applications. With high impact test values, it can be safely used under low-temperature conditions (up to -20°C).

Featuring two distinct holes, the upper hole connects with Austlift Ring Clutch, while the bottom hole reinforces force transmission to the precast concrete element, ensuring stability and lifting precision. Batch tested for quality assurance, Austlift Spread Anchors provide consistent reliability in construction environments.

Advantages:
- High tensile strength
- Cold-weather performance (-20°C)
- Reinforced force transmission
- Compatible with Austlift Ring Clutch
- Batch tested
What’s Included:
- 1 x Spread Anchor (As per WLL selected)
Features
- Manufactured from high-strength low alloy steel plates, ensuring durability.
- Designed for lifting precast concrete girders, plates, and structural elements, optimizing efficiency.
- Upper hole used for Austlift Ring Clutch connection, ensuring secure lifting.
Specifications

Material

High-strength low alloy steel

Usage

Lifting precast concrete girders, plates, and other elements

Temperature Resistance

Suitable for low temperatures (up to -20°C)

Testing

Batch tested

Marking

Size, WLL, and manufacturing details

Code

730711

Size

30×110mm

WLL

2.5T

Material

High-strength low alloy steel

Usage

Lifting precast concrete girders, plates, and other elements

Temperature Resistance

Suitable for low temperatures (up to -20°C)

Testing

Batch tested

Marking

Size, WLL, and manufacturing details

Code

731411

Size

30×110mm

WLL

1.4T

Material

High-strength low alloy steel

Usage

Lifting precast concrete girders, plates, and other elements

Temperature Resistance

Suitable for low temperatures (up to -20°C)

Testing

Batch tested

Code

731416

Size

30×160mm

WLL

1.4T

Material

High-strength low alloy steel

Usage

Lifting precast concrete girders, plates, and other elements

Temperature Resistance

Suitable for low temperatures (up to -20°C)

Testing

Batch tested

Marking

Size, WLL, and manufacturing details

Description
Additional information

Description

The Spread Anchor is manufactured from high-strength low alloy steel plates, ensuring excellent tensile strength and elongation for secure lifting applications. With high impact test values, it can be safely used under low-temperature conditions (up to -20°C).

Featuring two distinct holes, the upper hole connects with Austlift Ring Clutch, while the bottom hole reinforces force transmission to the precast concrete element, ensuring stability and lifting precision. Batch tested for quality assurance, Austlift Spread Anchors provide consistent reliability in construction environments.
