SLPY

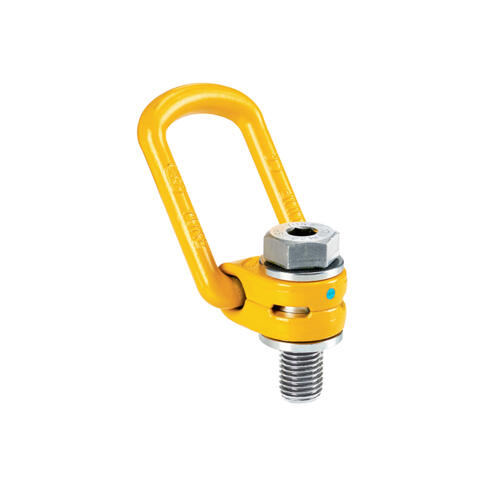

Swivel Lifting Point Yoke

$109.00 – $139.00

Swivel lifting point with 360-degree rotation and 90-degree pivot, manufactured from alloy steel, tested to EN1677-1 and DGUV GS OA 15-04 standards.

SLPY0.3T
SLPY0.63T
SLPY1T
SLPY1.5T
Make an Enquiry
Delivery Quote

SKU: SLPY Category:
  • Description

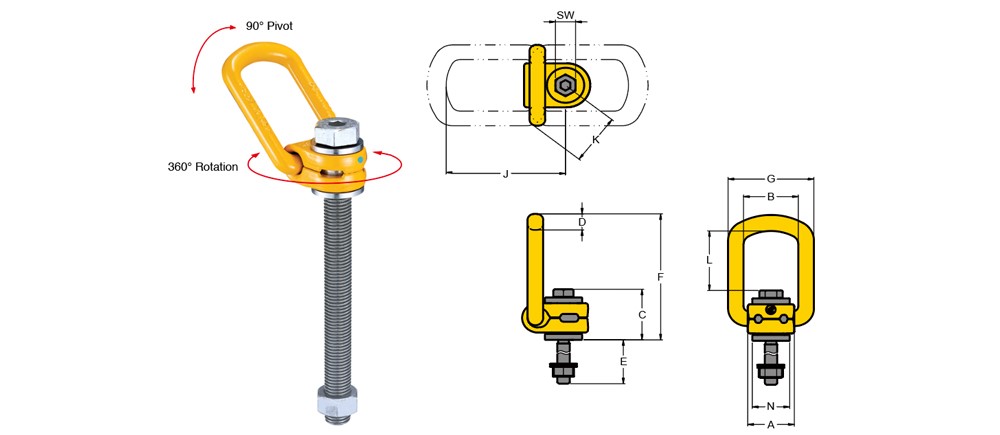

    The Swivel Lifting Point Yoke is designed for precise load handling, offering 360-degree rotation and 90-degree pivot functionality for multidirectional lifting. Manufactured from quenched and tempered alloy steel, it meets EN1677-1 standards and is certified by DGUV GS OA 15-04, ensuring superior durability and reliability. Load-rated components are 100% magnaflux crack detected and individually traceable to test certification, providing full safety assurance. The metric-thread bolts allow for secure installation, while the unit is proof tested to 2.5 times the WLL and fatigue rated to 20,000 cycles at 1.5 times WLL, complying with ASME B30.26 safety requirements. The quick and simple assembly requires only a tapped hole, making it highly adaptable for industrial applications.

    Advantages:

    • 360° rotation
    • 90° pivot
    • Forged alloy steel
    • Certified for safety
    • Metric-thread bolts
    • Quick installation



    What’s Included:

    • 1 x Swivel Lifting Point Yoke (Size as selected).
  • Features
    • 360-degree rotation and 90-degree pivot allow precise lifting in multiple directions while ensuring stability.
    • Forged alloy steel construction, quenched and tempered, provides excellent durability under heavy loads.
    • Load-rated parts undergo 100% magnaflux crack detection, ensuring superior safety and compliance.

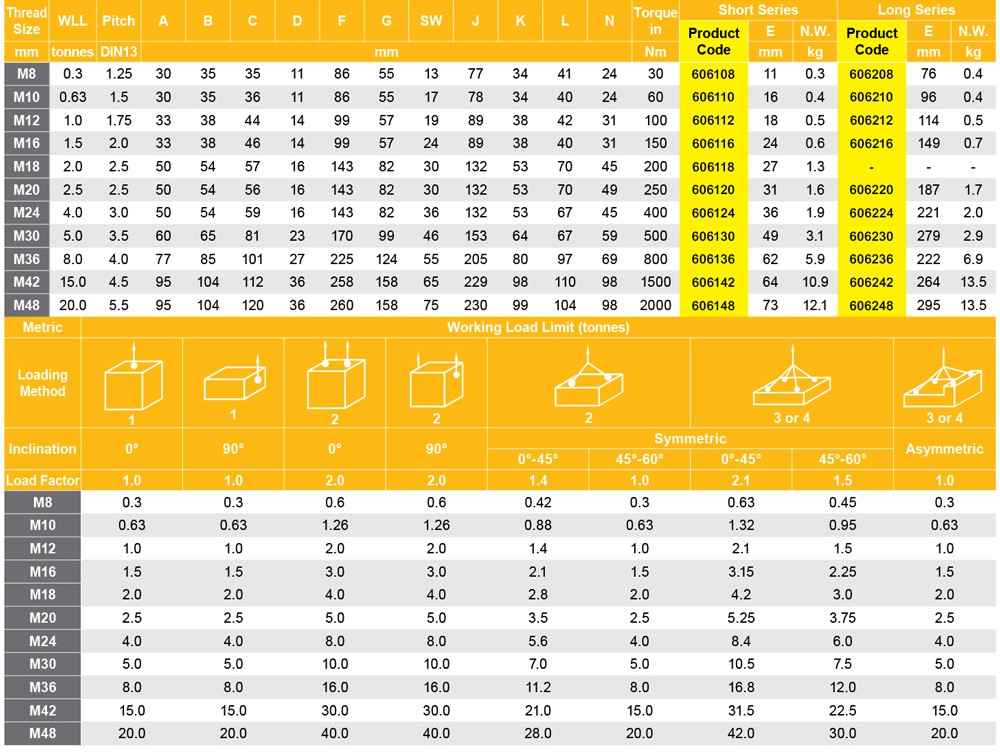

  • Specifications
    Standard
    EN1677-1, ASME B30.26
    Certification
    DGUV GS OA 15-04
    Testing
    Proof tested at 2.5 times WLL
    Fatigue Rating
    20,000 cycles at 1.5 times WLL
    Material Inspection
    100% magnaflux crack detected
    Traceability
    Individual forged parts and cap screw batch-coded
    Thread Type
    Metric thread bolts
    Installation
    Requires a tapped hole for quick and simple assembly

Description

The Swivel Lifting Point Yoke is designed for precise load handling, offering 360-degree rotation and 90-degree pivot functionality for multidirectional lifting. Manufactured from quenched and tempered alloy steel, it meets EN1677-1 standards and is certified by DGUV GS OA 15-04, ensuring superior durability and reliability. Load-rated components are 100% magnaflux crack detected and individually traceable to test certification, providing full safety assurance. The metric-thread bolts allow for secure installation, while the unit is proof tested to 2.5 times the WLL and fatigue rated to 20,000 cycles at 1.5 times WLL, complying with ASME B30.26 safety requirements. The quick and simple assembly requires only a tapped hole, making it highly adaptable for industrial applications.

Advantages:

  • 360° rotation
  • 90° pivot
  • Forged alloy steel
  • Certified for safety
  • Metric-thread bolts
  • Quick installation



What’s Included:

  • 1 x Swivel Lifting Point Yoke (Size as selected).

Additional information

Weight N/A
Dimensions N/A
Size

8mm, 10mm, 12mm, 16mm
