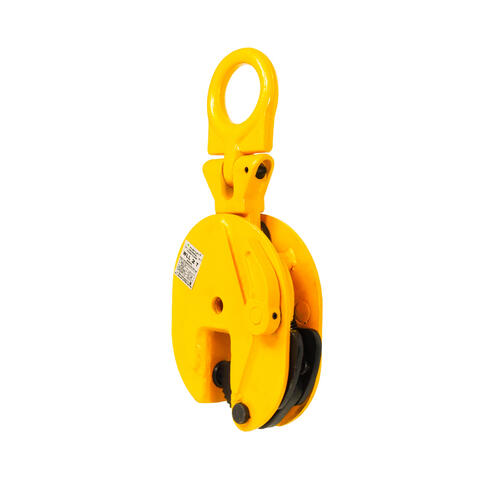

Universal Plate Clamp
Price range: $127.00 through $725.00
Universal plate clamps with hinged lifting eye—engineered for vertical lifting and turning of steel plates with certified safety and traceability.
Description
Austlift Universal Plate Clamps are designed for vertical lifting and turning of steel plates up to 180°, across construction, shipbuilding, and engineering environments. The hinged lifting eye allows for directional flexibility, making it suitable for varied lifting setups.
Each clamp is individually serial numbered and supplied with a test certificate and user manual. Manufactured to handle material hardness up to 37RC, these clamps meet AS/NZS 4991 standards and are proof tested to twice their rated capacity.
Advantages:
- Hinged lifting eye
- 37RC hardness rated
- Serial numbered
- Supplied with certificate
- AS/NZS 4991 compliant
- Multi-directional lifting
What’s Included:
- 1 x Universal Plate Clamp (As per WLL selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

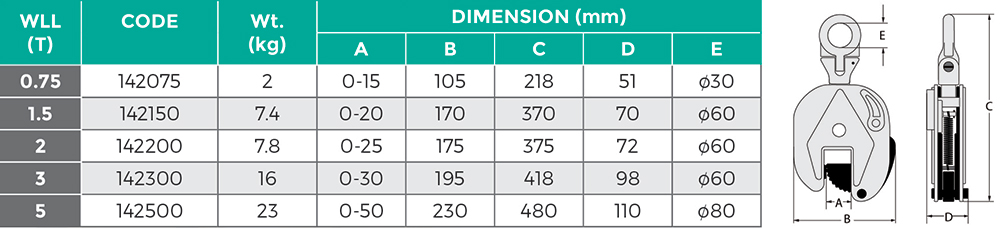

| WLL (T) | 0.75, 1.5, 2.0, 3.0, 5.0 |
