ILB02510AL3

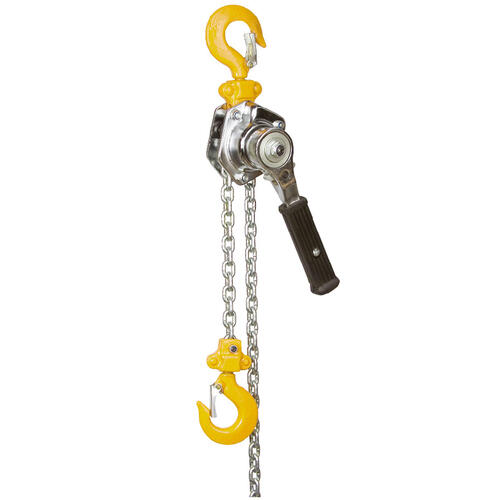

Industrial Lever Block 0.25T 1.0M Model AL3

Name: Industrial Lever Block 0.25T 1.0M Model AL3
SKU: ILB02510AL3
Availability: InStock

$135.00

Compact 0.25T industrial lever block with 1.0M lift height—ideal for short-lift hoisting and pulling in construction, mining, and industrial applications.

In stock

SKU: ILB02510AL3 Category: Material Handling

Description
The AL-3 Series Industrial Lever Block 0.25T 1.0M is designed for general-purpose hoisting and pulling in mining, construction, and industrial environments. With a 1.0 metre standard lift height, this compact unit is ideal for short-lift applications and confined spaces.

Constructed with a robust steel body, it features a ball-bearing swivel hook, precision gearing, and a lightweight design for easy portability. Each unit is tested to 150% of its rated capacity and supplied with a compliance certificate.

Advantages:
- 0.25T WLL
- 1.0M lift height
- Compact & portable
- Ball bearing swivel hook
- Durable steel construction
- Certified & tagged
What’s Included:
- 1 x Industrial Lever Block 0.25T 1.0M Model AL3
Features
- Designed for short-lift hoisting and pulling in industrial and domestic settings
- Ball bearing swivel hook allows smooth rotation under load
- Lightweight and compact for easy handling and transport
Specifications

Model

AL-3

WLL (T)

0.25

Standard Lift Height (m)

1.0

Test Load (T)

0.38

Effort Required at Capacity (N)

217

Net Weight (kg)

1.85

No. of Chain Falls

1

Headroom (Hook to Hook Min.)

205mm

Handle Length

153mm

Hook Opening

17.12mm

Code

121002
Resources & Downloads

Lever Block AL-3 AL-4

User Manual
