Special Order

Special Ordered Items have extended Delivery or Click & Collect timelines. Please purchase and we will organise the goods for you. Read More

TBYOKE

Trawl Block with Swivel Eye Yoke

Name: Trawl Block with Swivel Eye Yoke
SKU: TBYOKE
Availability: InStock

$1,240.00

Forged trawl block with swivel eye and tapered bearings—engineered for marine-grade lifting with corrosion resistance and certified safety.

In stock

SKU: TBYOKE Category: Material Handling

Description
Trawl Blocks with Swivel Eye Yoke are designed for demanding marine and industrial lifting applications. All components—including the swivel eye, side plates, and sheave—are fully forged for maximum strength and durability. The hot-dipped galvanized finish provides excellent corrosion resistance in saltwater environments.

Each unit is fitted with tapered bearings and pressure lube fittings to ensure smooth operation under load. Individually tested and certified, these blocks meet a minimum ultimate load requirement of 4 times the rated working load limit, ensuring safety and reliability in critical lifting scenarios.

Advantages:
- Forged components
- Corrosion resistant
- Tapered bearings
- Pressure lube fittings
- Individually tested
- 4:1 safety factor
What’s Included:
- 1 x Trawl Block with Swivel Eye Yoke
Features
- 8-inch sheave with 2 7/8″ rim thickness for robust rope guidance
- Tapered bearing design supports high radial loads and smooth rotation
- Swivel eye allows flexible rigging and directional alignment under tension

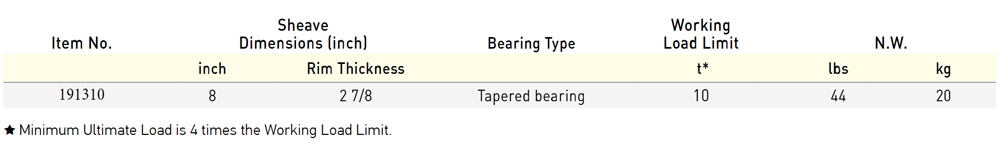

Specifications

Sheave Diameter (inch)

8

Sheave Rim Thickness (inch)

2 7/8

Bearing Type

Tapered Bearing

WLL (T)

10

Minimum Ultimate Load (T)

40

Finish

Hot-Dipped Galvanized

Construction

Fully Forged

Compliance

Individually Tested

Code

191310
