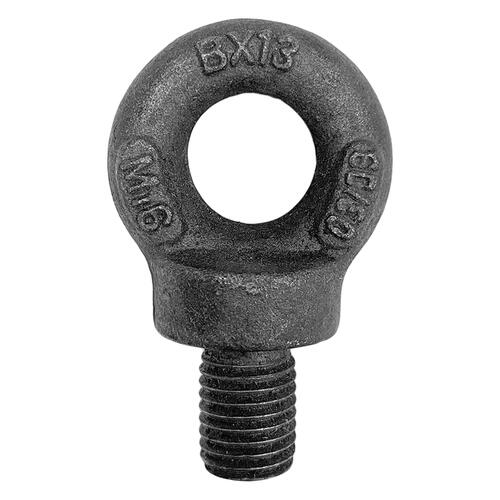

Eye Bolt BS4278 Black Metric Thread Grade 4 Carbon Steel
$3.00 – $10.00
Heavy-duty eye bolt with a metric thread, manufactured from Grade 4 carbon steel and tested to AS2317.1:2018 and BS4278 standards.
Description

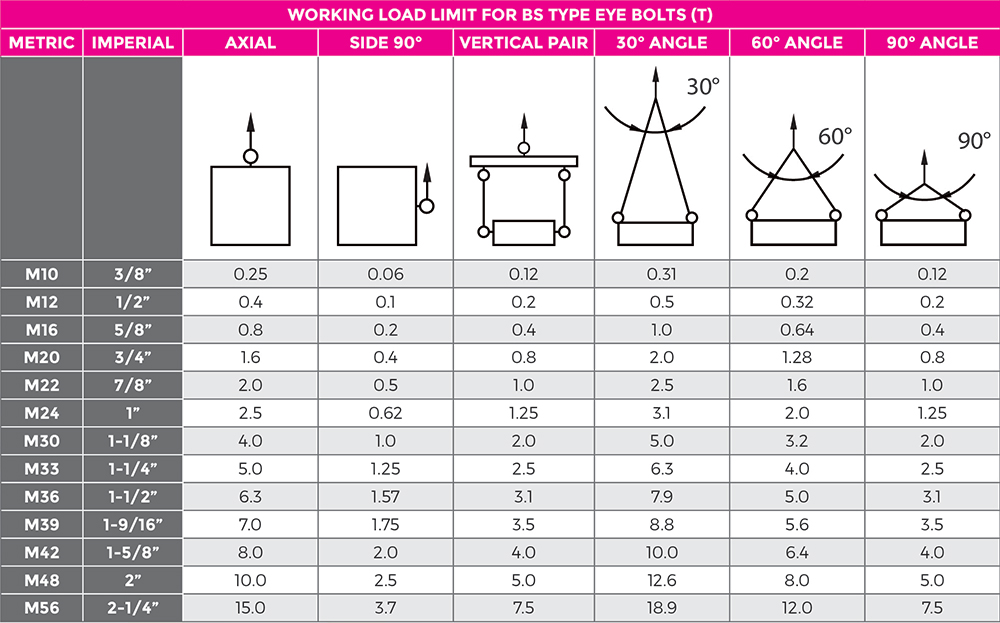

The Eye Bolt BS4278 Black Series is designed for secure lifting and termination applications, offering metric threading for compatibility with rated female threads or nuts. Manufactured from Grade 4 carbon steel, conforming to AS 2017.1:2018 / BS970 steel specifications, these bolts feature a zinc-plated finish and a compact eye design compared to DIN types. Tested to AS2317.1:2018 and BS4278 standards, each bolt is marked with axial and transverse working load limits, direction indication arrows, nominal size, and batch numbers for easy identification. Proof tested to twice the working load limit (WLL) and with a minimum breaking force of six times WLL, these eye bolts provide trusted durability and strength for various lifting and securing applications. Test certificates are available upon request.
Advantages:
- High-strength carbon steel construction
- Marked for easy load identification
- Compact design for efficient usage
- Certified safety standards
- Proof tested reliability
- Versatile termination applications
What’s Included:
- 1 x Eye Bolt BS4278 Black (Capacity as selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

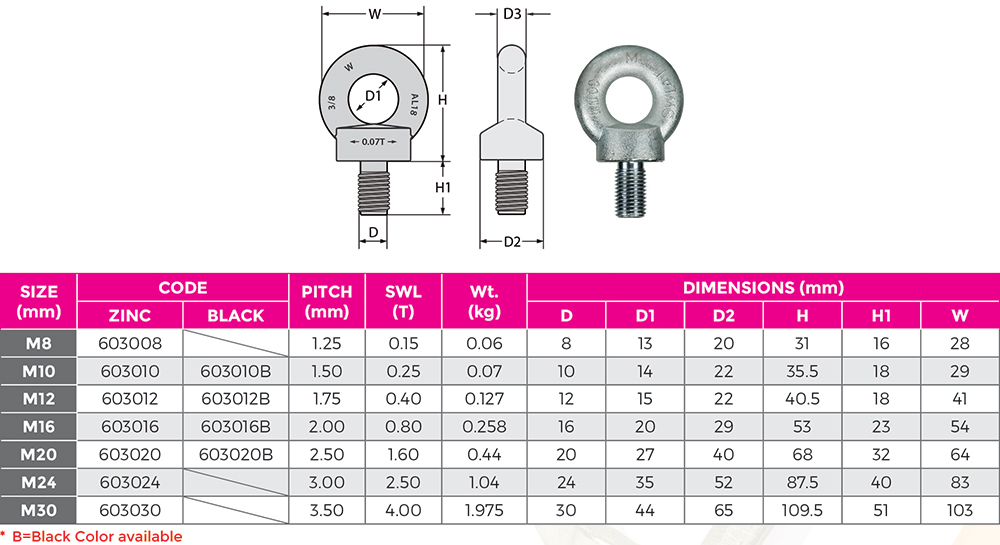

| Size | 10mm, 12mm, 16mm, 20mm |
