Shackle Grade M Dee Galvanised
Shackle Grade M Dee Galvanised
Shackle Grade M Dee Galvanised
Shackle Grade M Dee Galvanised
Icons / Feature / Tracked Parcels

Special Ordered Items have extended Delivery or Click & Collect timelines. Please purchase and we will organise the goods for you. Read More

SGMDG

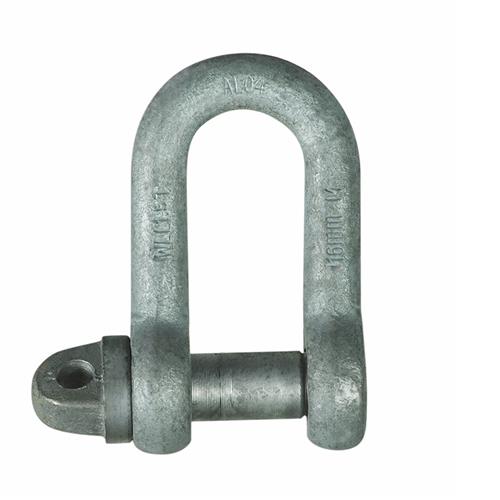

Shackle Grade M Dee Galvanised

Price range: $2.00 through $23.00

Heavy-duty Grade M dee shackle with screw pin, manufactured to AS2741 standards, made from Grade 40 alloy steel with a hot-dip galvanized finish for corrosion resistance.

SGMDG6x0.25T
SGMDG10x0.5T
SGMDG13x0.75T
SGMDG16x1.5T
SGMDG19x2T
SGMDG22x3T
SGMDG25x3.8T
Make an Enquiry
Delivery Quote

SKU: SGMDG Category:
  • Description

    The Grade M Dee Galvanised Shackle is designed for applications requiring larger dimensional shackles, offering secure connections for lifting, marine, agricultural, and industrial purposes. Manufactured from Grade 40 alloy steel, it features a dee-shaped design with a screw pin, ensuring easy assembly and reliable load management. The hot-dip galvanized finish enhances corrosion resistance, making this shackle ideal for outdoor environments. Compliant with AS2741 safety standards, each unit is proof-tested to twice the WLL, with a minimum break force of six times WLL, ensuring high-performance reliability.

    Advantages:

    • Heavy-duty lifting
    • Larger dimensional shackle
    • Hot-dip galvanized finish
    • Traceable batch coding
    • AS2741 compliance
    • Certified for industrial use



    What’s Included:

    • 1 x Shackle Grade M Dee Galvanised (As per size selected)
  • Features
    • Grade 40 alloy steel construction, delivering superior strength and durability.
    • Dee shape with screw pin, providing a secure and stable lifting connection.
    • Hot-dip galvanized finish, ensuring corrosion resistance for outdoor applications.

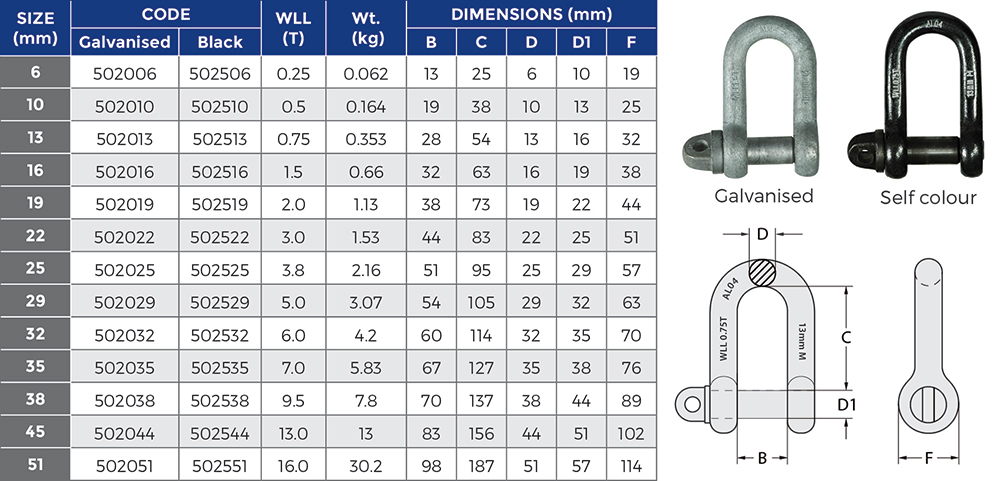

  • Specifications
    Standard
    AS2741
    Material
    Grade 40 alloy steel
    Finish
    Hot-dip galvanized
    Safety Pin
    Screw pin configuration
    Testing
    Proof-tested at 2x WLL
    Break Force
    Minimum 6x WLL
    Identification
    Marked with WLL, batch number, size, and supplier details
    Temperature Derating
    200°C - 300°C → 10% derate required
    Temperature Derating
    300°C - 400°C → 25% derate required
    Temperature Derating
    Above 400°C → Not suitable for use

Description

The Grade M Dee Galvanised Shackle is designed for applications requiring larger dimensional shackles, offering secure connections for lifting, marine, agricultural, and industrial purposes. Manufactured from Grade 40 alloy steel, it features a dee-shaped design with a screw pin, ensuring easy assembly and reliable load management. The hot-dip galvanized finish enhances corrosion resistance, making this shackle ideal for outdoor environments. Compliant with AS2741 safety standards, each unit is proof-tested to twice the WLL, with a minimum break force of six times WLL, ensuring high-performance reliability.

Advantages:

  • Heavy-duty lifting
  • Larger dimensional shackle
  • Hot-dip galvanized finish
  • Traceable batch coding
  • AS2741 compliance
  • Certified for industrial use



What’s Included:

  • 1 x Shackle Grade M Dee Galvanised (As per size selected)

Additional information

Weight N/A
Dimensions N/A
Size

6mm, 10mm, 13mm, 16mm, 19mm, 22mm, 25mm
