SBPL

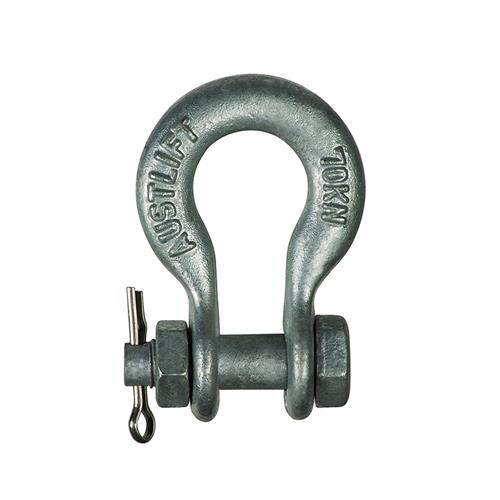

Shackle Bow for Power Line 70KN 16mm

Name: Shackle Bow for Power Line 70KN 16mm
SKU: SBPL
Availability: InStock

$11.00

Special-purpose bow shackle for electrical and railway applications, manufactured from high-tensile steel with a stainless steel humpback split pin, conforming to AS1154.2 standards.

In stock

SKU: SBPL Category: D & Bow Shackles

Description
The Shackle Bow for Power Line 70KN is designed for electrical industry and railway applications, providing secure connections for insulator and conductor fittings in overhead power lines. Manufactured from high-tensile steel, it features a bow configuration with a safety pin and a hot-dip galvanized finish, ensuring corrosion resistance and durability in outdoor environments. The stainless steel humpback split pin enhances security and stability, making it suitable for holding applications. This shackle meets AS1154.2 standards, ensuring compliance with industry regulations.

Advantages:
- Electrical industry use
- Railway applications
- Hot-dip galvanized protection
- Secure safety pin design
- Conforms to AS1154.2
What’s Included:
- 1 x Shackle Bow for Power Line 70KN 16mm
Features
- High-tensile steel construction, providing superior strength for electrical and railway applications.
- Safety pin with hot-dip galvanized finish, ensuring corrosion resistance and reliability.
- Stainless steel humpback split pin, offering enhanced security in holding applications.

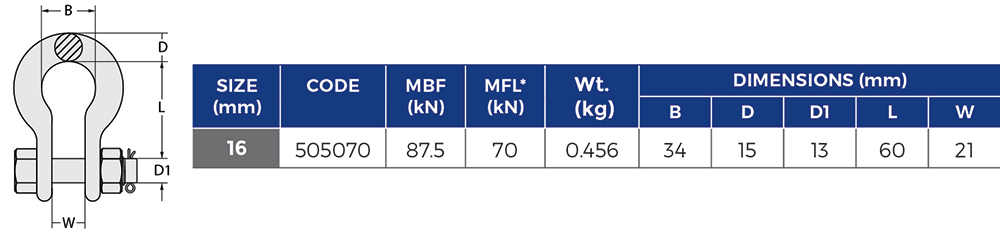

Specifications

Standard

AS1154.2

Material

High-tensile steel

Finish

Hot-dip galvanized

Safety Pin

Stainless steel humpback split pin

Application

Electrical and railway use

Temperature Derating Guidelines

200°C - 300°C → 10% derate required

Temperature Derating Guidelines

300°C - 400°C → 25% derate required

Temperature Derating Guidelines

Above 400°C → Not suitable for use
