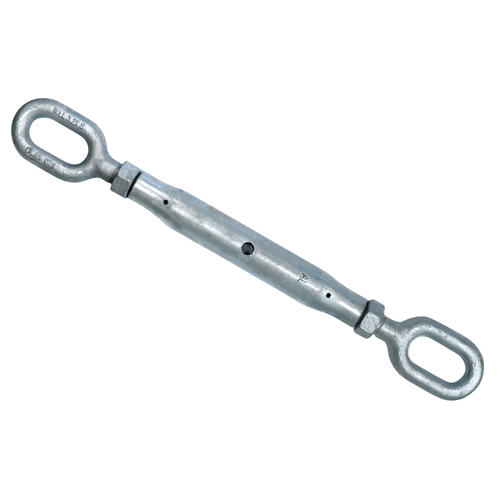

Rigging Screw Grade S Eye/Eye
Price range: $17.00 through $58.00
Heavy-duty Grade S rigging screw with eye/eye fittings, manufactured to AS2319 standards, hot-dip galvanized for outdoor use, proof-tested for industrial lifting applications.
Description
The Rigging Screw Grade S Eye/Eye is designed for heavy-duty straight or in-line tensioning, providing secure load adjustment for wire rope and chain assemblies. Manufactured from Grade S high-tensile steel, it is quenched and tempered for maximum durability and hot-dip galvanized to ensure corrosion resistance, making it suitable for outdoor applications. The eye-end fittings with lock nuts ensure stable load positioning, preventing unwanted movement during tensioning. This rigging screw meets AS2319 standards and undergoes individual proof testing, ensuring reliability for industrial lifting purposes. Proof-tested to 2x WLL, with a minimum break force of 6x WLL, this unit is ideal for securing and adjusting loads in demanding environments.
Advantages:
- Heavy-duty tensioning
- High tensile steel
- Eye/eye fittings
- Hot-dip galvanized
- Certified for lifting
- Individual proof tested
What’s Included:
- 1 x Rigging Screw Grade S Eye/Eye (WLL as selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

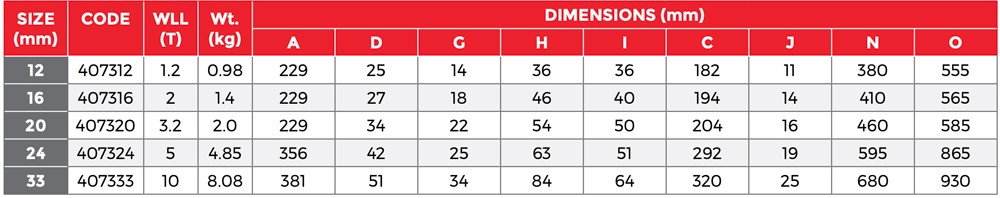

| Size | 10mm, 12mm, 16mm, 20mm |
