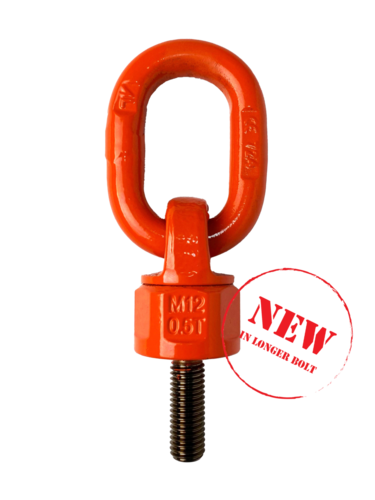

Oblong Eye Bolt Long Series Swivel Ring G80 Alloy Steel
$27.50 – $54.50
Swivel ring bolt with extended thread length manufactured from G80 alloy steel tested to EN1667 4 and AS2318 standards
Description
The Oblong Eye Bolt Long Series is designed for dynamic lifting applications featuring a swivel ring capable of rotating under load due to ball bearing rings Manufactured from forged G80 alloy steel with an extended thread length these bolts provide 360 degree rotation and 230 degree swing flexibility allowing optimized lifting angles Proof tested to 2.5 times the load limit and fatigue tested for 20000 cycles at 1.5 times WLL meeting EN1667 4 and AS2318 standards for maximum reliability Test certificates available upon request.
Advantages:
- Swivel ring rotates under load for dynamic lifting
- Extended thread length for versatile applications
- High strength G80 alloy steel construction
- Certified safety testing and proof load validation
- Ball bearing rings for smooth rotation
- 360 degree rotation with 230 degree swing flexibility
What’s Included:
- 1 x Oblong Eye Bolt Long Series (As per size selected)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

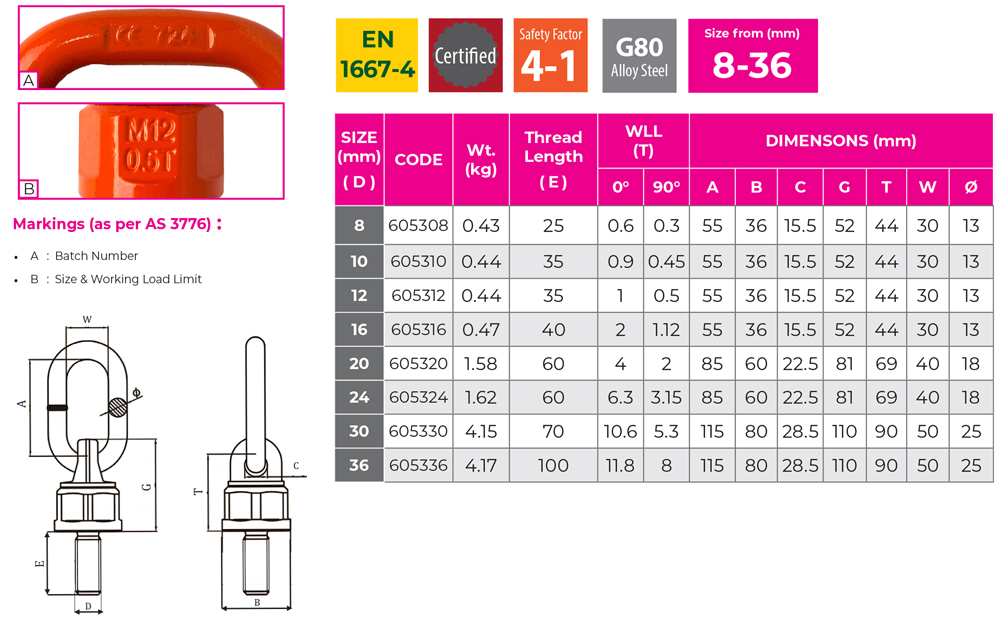

| Size | 8mm, 10mm, 12mm, 16mm, 20mm |
