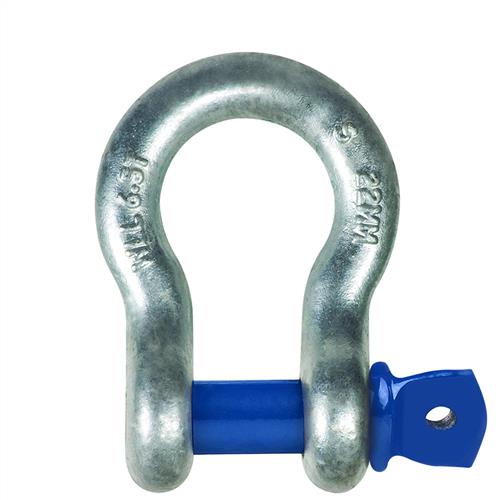

Shackle Grade ‘S’ Bow Screw Galvanised
Price range: $2.00 through $8.70
Heavy-duty Grade S bow shackle with screw pin, manufactured to AS2741 standards, hot-dip galvanized for corrosion resistance, proof-tested for lifting applications.
Description
The Grade ‘S’ Bow Screw Galvanised Shackle is designed for secure lifting applications, providing strong connections for chain, wire rope, and other rated fittings. Manufactured from high-tensile Grade S material, it features a bow configuration with a screw pin, ensuring easy assembly and secure load management. The hot-dip galvanized finish enhances corrosion resistance, making it suitable for outdoor use across marine, agricultural, mining, and engineering industries. Each unit is marked with WLL, quality grade, batch number, nominal size, and supplier identification, ensuring full traceability and compliance. Proof-tested to twice the WLL, with a minimum break force of six times WLL, this shackle meets AS2741 safety standards.
Advantages:
- Heavy-duty lifting
- Hot-dip galvanized finish
- Traceable batch coding
- AS2741 compliance
- Certified for industrial use
What’s Included:
- 1 x Shackle Grade ‘S’ Bow Screw Galvanised (As per size selected)

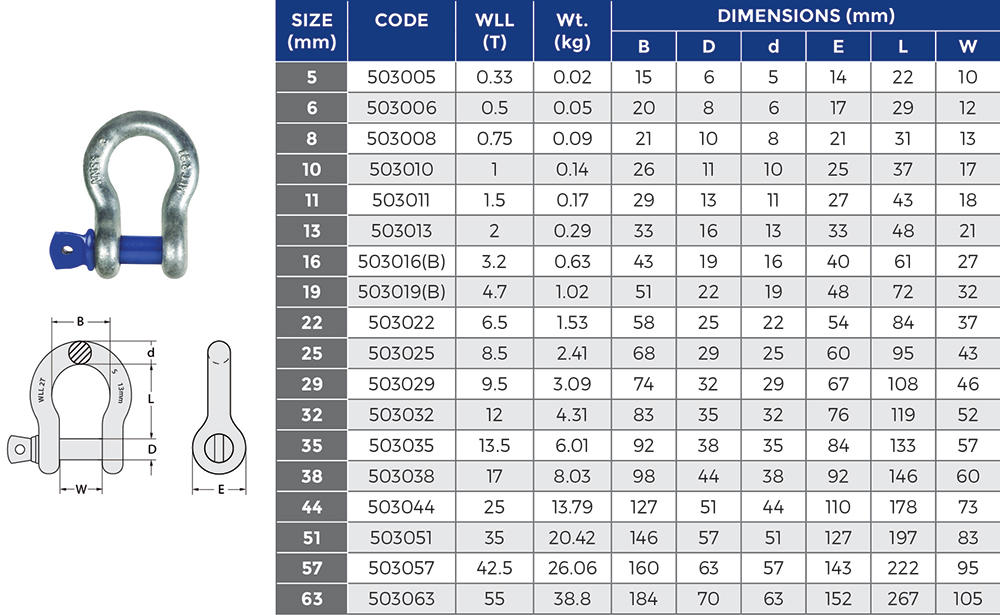

Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 5mm, 6mm, 8mm, 10mm, 11mm |
