SGSBPC

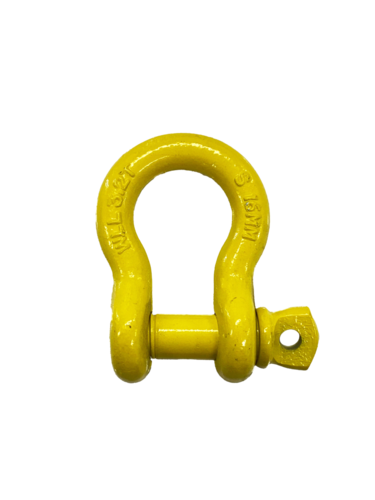

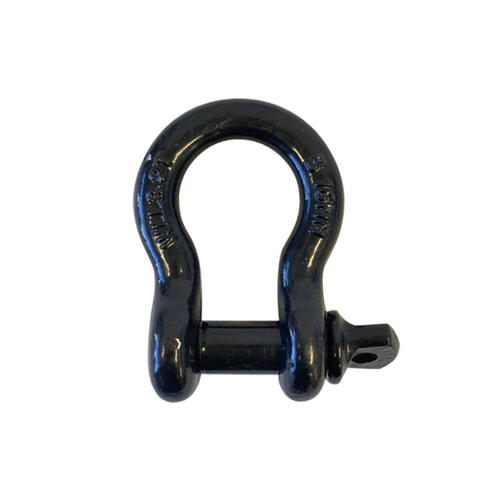

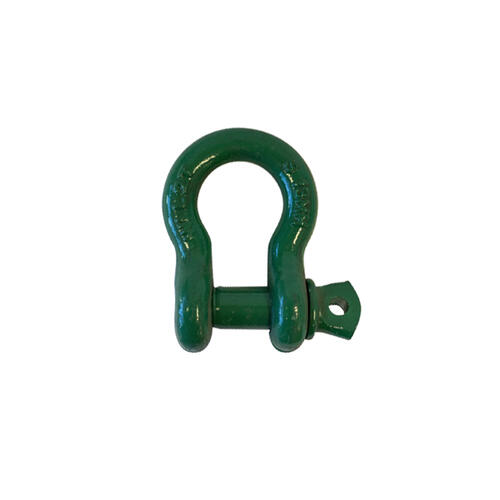

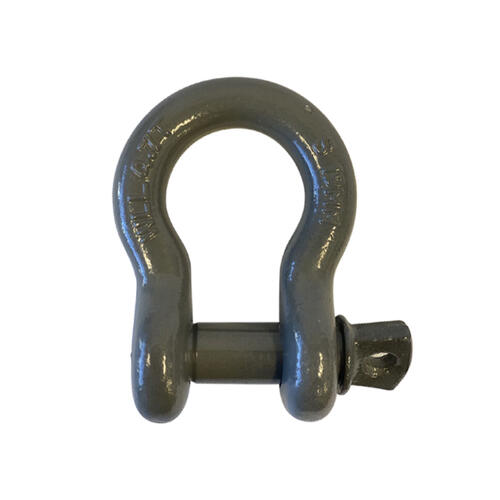

Shackle Grade ‘S’ Bow Screw with Powder Colour Coated

Price range: $4.00 through $12.00

Heavy-duty Grade S bow shackle with screw pin, powder-coated for identification, manufactured to AS2741 standards, proof-tested for lifting applications.

SGSBPC10x1T
SGSBPC13x2T
SGSBPC16x3.2TB
SGSBPC16x3.2TC
SGSBPC19x4.7T
Make an Enquiry
Delivery Quote

SKU: SGSBPC Category:
  • Description

    The Grade ‘S’ Bow Screw Shackle with Powder Colour Coating is designed for secure lifting applications, providing strong connections for chain, wire rope, and other rated fittings. Manufactured from high-tensile Grade S material, it features a bow configuration with a screw pin, ensuring easy assembly and secure load management. The hot-dip galvanized finish enhances corrosion resistance, while the powder colour coating enables clear identification. Used widely in marine, agricultural, mining, and engineering industries, this shackle meets AS2741 safety standards and is proof-tested to twice the WLL, with a minimum break force of six times WLL.

    Advantages:

    • Heavy-duty lifting
    • Hot-dip galvanized finish
    • Powder colour coating
    • Traceable batch coding
    • AS2741 compliance



    What’s Included:

    • 1 x Shackle Grade ‘S’ Bow Screw Powder Colour Coated (As per size selected)
  • Features
    • Grade S high-tensile steel construction, ensuring durability and load resistance.
    • Hot-dip galvanized screw pin design, providing enhanced corrosion protection.
    • Powder-coated in multiple colors for easy identification during lifting operations.
    • Marked with WLL, batch number, size, and supplier details for full traceability.
  • Specifications
    Standard
    AS2741
    Material
    Grade S high-tensile steel
    Finish
    Hot-dip galvanized
    Safety Pin
    Screw pin configuration
    Testing
    Proof-tested at 2x WLL
    Break Force
    Minimum 6x WLL
    Identification
    Marked with WLL, batch number, size, and supplier details
    Temperature Derating
    200°C - 300°C → 10% derate required
    Temperature Derating
    300°C - 400°C → 25% derate required
    Temperature Derating
    Above 400°C → Not suitable for use

Description

The Grade ‘S’ Bow Screw Shackle with Powder Colour Coating is designed for secure lifting applications, providing strong connections for chain, wire rope, and other rated fittings. Manufactured from high-tensile Grade S material, it features a bow configuration with a screw pin, ensuring easy assembly and secure load management. The hot-dip galvanized finish enhances corrosion resistance, while the powder colour coating enables clear identification. Used widely in marine, agricultural, mining, and engineering industries, this shackle meets AS2741 safety standards and is proof-tested to twice the WLL, with a minimum break force of six times WLL.

Advantages:

  • Heavy-duty lifting
  • Hot-dip galvanized finish
  • Powder colour coating
  • Traceable batch coding
  • AS2741 compliance



What’s Included:

  • 1 x Shackle Grade ‘S’ Bow Screw Powder Colour Coated (As per size selected)

Additional information

Weight N/A
Dimensions N/A
Size

10mm, 13mm, 16mm, 16mm, 19mm
